Designplan

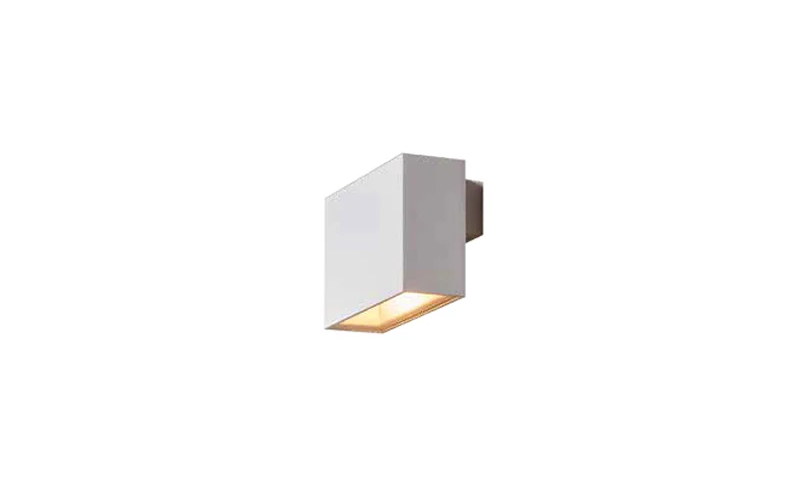

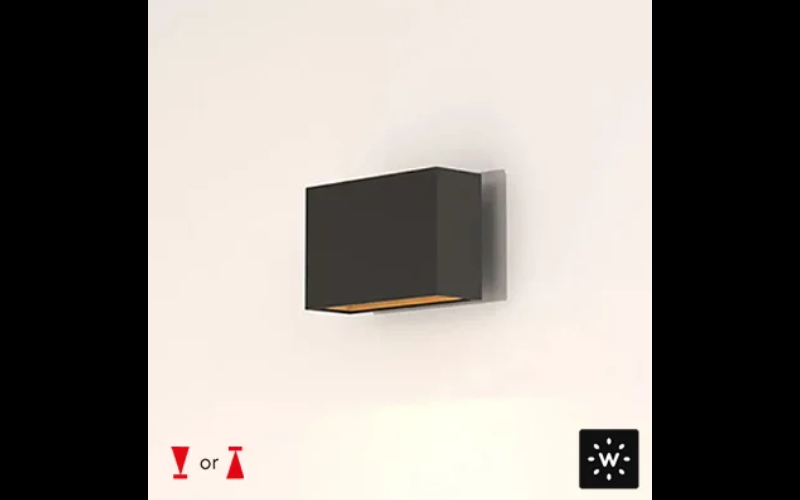

Boa Wall Single LED Up OR Down Wall Mount, 5.9'' x 3.9'' h, 7W, 460 lm, IP20.
 Configure
 Add to project
Designplan. Boa Wall Single LED Up OR Down Wall Mount, 5.9'' x 3.9'' h, 7W, 460 lm, IP20.
Designplan. Boa Wall Single LED Up OR Down Wall Mount, 5.9'' x 3.9'' h, 7W, 460 lm, IP20.
Designplan. Boa Wall Single LED Up OR Down Wall Mount, 5.9'' x 3.9'' h, 7W, 460 lm, IP20.
RESOURCES
DESCRIPTION
Boa Wall Single is a rectangular, single beam, wall mounted light that is suitable for indoor installation in a variety of contemporary settings where a powerful and clearly defined light beam is required. It is available in 2 color temperatures and 4 standard finish combinations.
MORE DESCRIPTION
SPECIFICATIONS
  • Dimensions
    W: 3.15"
    L: 5.91"
    H: 3.94"
  • Light Source
    LED
  • CCT/Color
    2700K
  • CRI
    90
  • Watt(Approx)
    7 W
  • Lumens(Approx)
    460 Lm
  • Optics
    DirectGeneral Diffused
  • Adjustable
  • Dimming
    Dim to 3-10%Dim to 1%Dim to <1%TRIAC/Forward/LeadingELV/Reverse/Trailing0-10VLutron Hi-lume Premier Eco (PEQ0)Lutron Hi-lume Eco (L3DAE)Lutron Hi-lume 3-wire (L3DA3W)
  • Controls/Network
  • Power/Voltage
    RemoteUNV 120-277V120V
  • Integral Emergency
  • Lumen Maintenance
    50000 h
  • Certificates
    ETL
  • Environment
  • Mounting Type
    Wall Surface
  • Housing
  • Housing Depth
 SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
