Designplan
BRICK SMOOTH LED Wall Mount, Up & Down, 2 lengths, 6W / 634 lm, 12W / 1686 lm, IP65.
 Configure
 Add to project

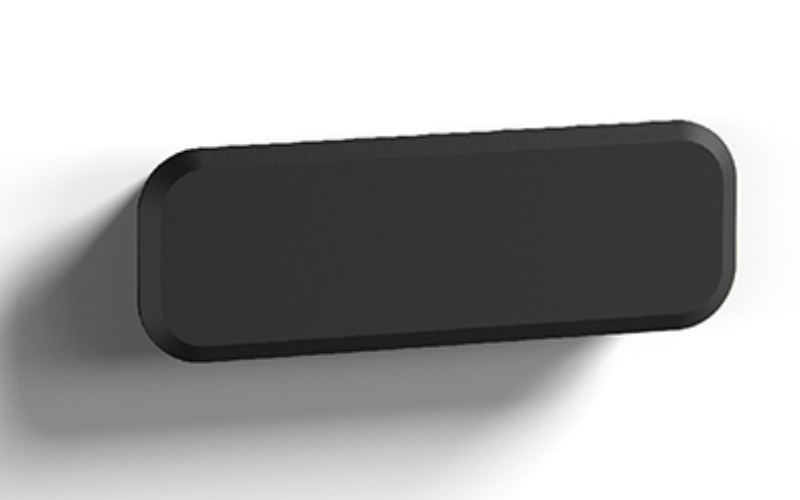

Designplan. BRICK SMOOTH LED Wall Mount, Up & Down, 2 lengths, 6W / 634 lm, 12W / 1686 lm, IP65.

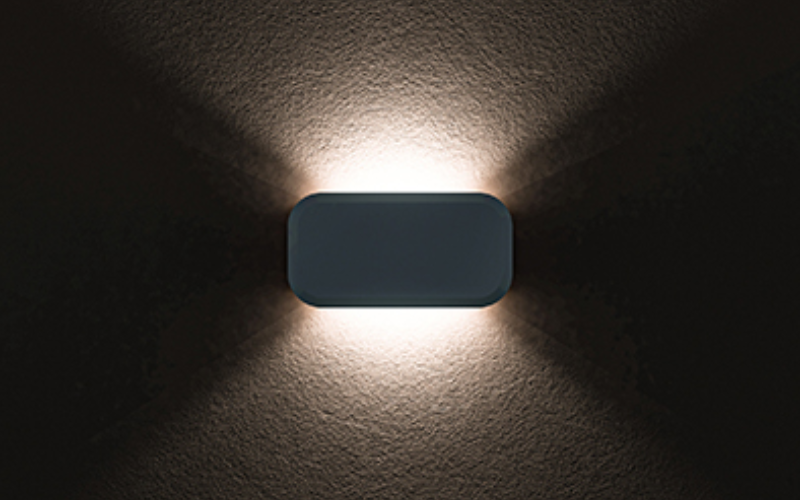

Designplan. BRICK SMOOTH LED Wall Mount, Up & Down, 2 lengths, 6W / 634 lm, 12W / 1686 lm, IP65.

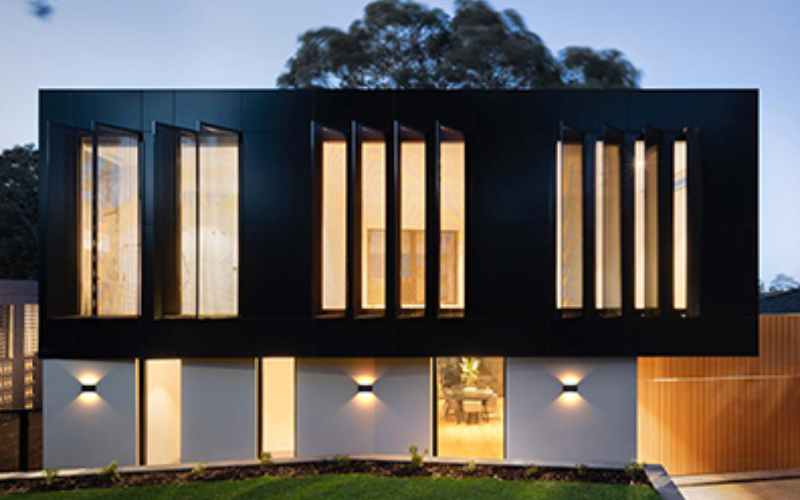

Designplan. BRICK SMOOTH LED Wall Mount, Up & Down, 2 lengths, 6W / 634 lm, 12W / 1686 lm, IP65.
Designplan. BRICK SMOOTH LED Wall Mount, Up & Down, 2 lengths, 6W / 634 lm, 12W / 1686 lm, IP65.
RESOURCES
DESCRIPTION
Brick Smooth is a sleek and versatile, rectangular, outdoor, wall mounted luminaire with rounded edges that provides up and down light emission. It is available in 2 lengths (7.7” or 11.6”), 3 color temperatures, and 2 standard metallic finishes as well as a primer finish that can be painted any color, and 2 Cementolight® textured concrete finishes.
MORE DESCRIPTION
SPECIFICATIONS
  • Dimensions
    W: 1.61"
    L: 7.68"11.61"
    H: 3.94"
  • Light Source
    LED
  • CCT/Color
    2700K3000K4000K
  • CRI
    90
  • Watt(Approx)
    6 W12 W
  • Lumens(Approx)
    634 Lm1686 Lm
  • Optics
    Direct/IndirectGeneral Diffused
  • Adjustable
  • Dimming
    Dim to 3-10%Dim to 1%Dim to <1%TRIAC/Forward/LeadingELV/Reverse/Trailing0-10VLutron Hi-lume Premier 3-wire (L3D03W)Lutron Hi-lume Eco (L3DAE)
  • Controls/Network
  • Power/Voltage
    RemoteUNV 120-277V120V
  • Integral Emergency
  • Lumen Maintenance
    55000 h
  • Certificates
    ETL
  • Environment
    IP65
  • Mounting Type
    Wall Surface
  • Housing
  • Housing Depth
 SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
