Reverso Recessed Motorized LED Downlight, AirCoral®, Ø2.0'' 6W, IP20.
Configure
Add to project
RESOURCES
-
SPEC SHEET
-
WHERE TO BUY
-
MANUFACTURER'S PAGE
-
ASK MANUFACTURER
DESCRIPTION

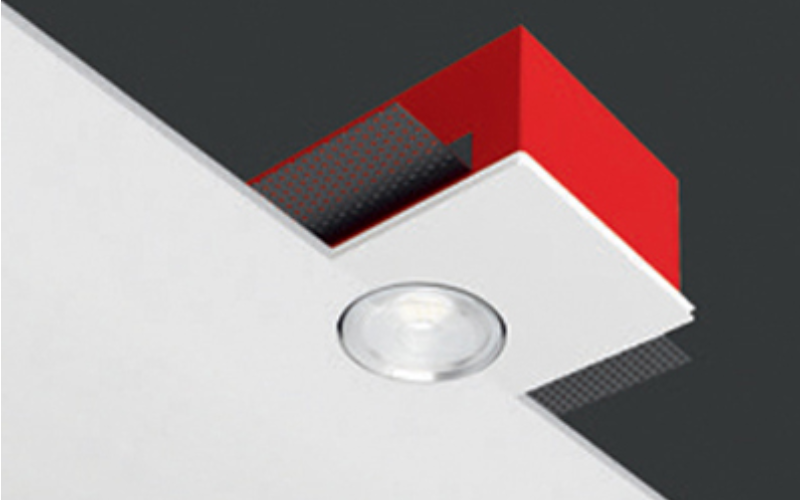

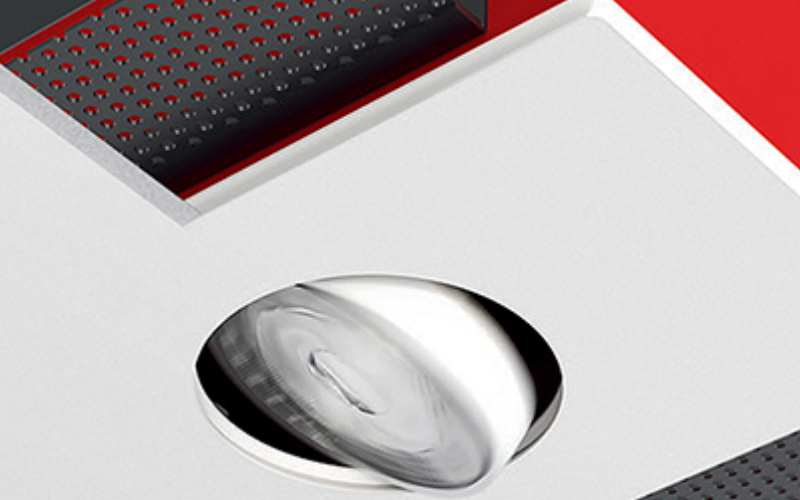

Reverso is a recessed downlight made of AirCoral® and inspired by the measured precision of Swiss watches. It has a silent and unobtrusive motorized mechanism with tilting case and total disappearance of light offering interchangeable lenses – narrow, medium and high beam – for optimal light customization.
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 1.97"L: 1.97"
- Light SourceLED
- CCT/Color2700K3000K4000K
- CRI90
- Watt(Approx)6 W
- Lumens(Approx)800 Lm
- OpticsDirectNarrowFloodWide Flood
- AdjustableAdjustable
- DimmingDim to 3-10%Dim to 1%Dim to <1%TRIAC/Forward/LeadingELV/Reverse/Trailing0-10VLutron Hi-lume Premier Eco (PEQ0)Lutron Hi-lume Eco (L3DAE)Lutron Hi-lume 3-wire (L3DA3W)
- Controls/Network
- Power/VoltageRemoteUNV 120-277V120V
- Integral Emergency
- Lumen Maintenance
- CertificatesETL
- EnvironmentAntimicrobial Finish
- Mounting TypeCeiling RecessedDrywall
- HousingNew Construction
- Housing Depth3.15 ''
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
Lead timeBU1859
Cost
—
CONFIGURATORDESCRIPTIONDIMENSIONSLIGHT SOURCEWATT/LUMENSPOWER/CONTROLSYou reconfigured the product. To remove this message please update you custom description.Marks unavailable product configuration, refer to manufacturer’s documentation for details
BUILD CATALOG NUMBER
