Designplan
C2-C LED Spotlight for Magnetic Track.
 Configure
 Add to project
Designplan.
Designplan.

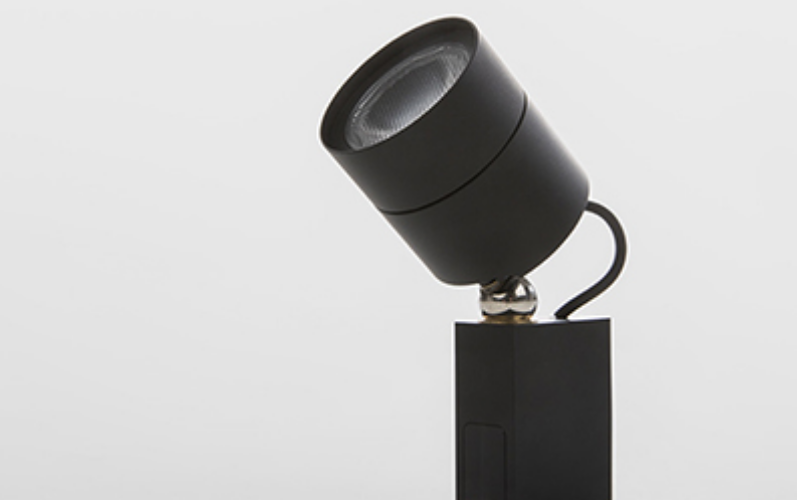

Designplan. C2-C LED Spotlight for Magnetic Track.

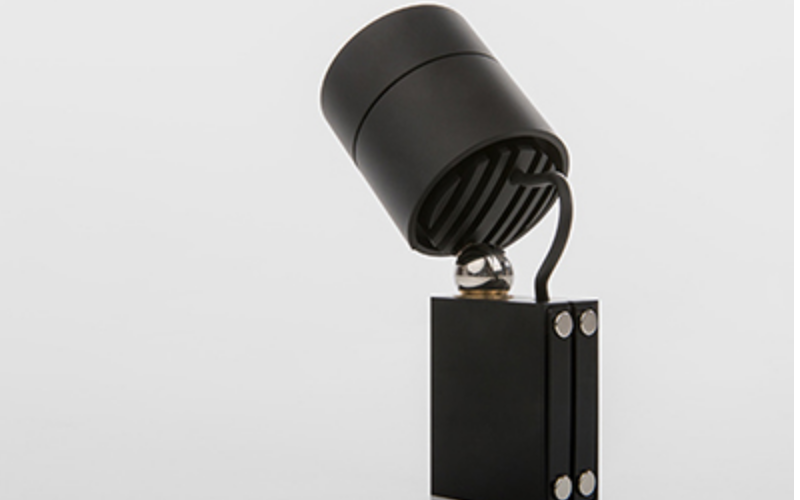

Designplan. C2-C LED Spotlight for Magnetic Track.
RESOURCES
DESCRIPTION
C2-C is an LED spotlight for installation on a magnetic track, suitable for showcase lighting in museum and retail settings. It is 180° rotatable, 90° swiveling, and available with a single or triple lens, 5 color temperatures and 2 standard finishes. C2-C is the only 24V track head and cannot be combined with other fixtures on the track. Dimming via the Casambi app.
MORE DESCRIPTION
SPECIFICATIONS
  • Dimensions
    W: 1.54"
    L: 1.54"
    H: 2.95"
  • Light Source
    LED
  • CCT/Color
    2700K3000K3500K4000K5700K
  • CRI
    90
  • Watt(Approx)
    4.5 W
  • Lumens(Approx)
    260 Lm310 Lm
  • Optics
    DirectNarrowMediumFloodWide Flood
  • Adjustable
    Adjustable
  • Dimming
    Dim to 3-10%Dim to <1%Non-DimTRIAC/Forward/LeadingELV/Reverse/Trailing0-10VLutron Hi-Lume 3-wire (L3D)Lutron Hi-lume Premier Eco (L3D0E)
  • Controls/Network
  • Power/Voltage
    RemoteUNV 120-277V120V
  • Integral Emergency
  • Lumen Maintenance
    50000 h
  • Certificates
    UL/CUL
  • Environment
  • Mounting Type
    Track/BuswayMagnetic System
  • Housing
  • Housing Depth
 SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
