C2-STT-M LED Spotlight for Multisystem EVO Track, Triple Lens, Ø1.5'', 9W, 630 lm, IP20ю
Configure
Add to project
RESOURCES
DESCRIPTION

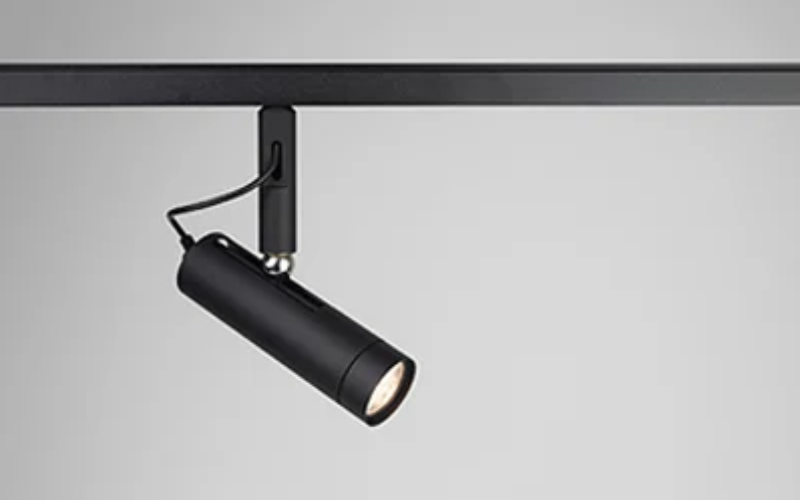

C2-STT-M is an LED spotlight with a ball pivot point and a triple lens for installation on Multisystem EVO track. It is suitable for showcase lighting in museum and retail settings, with 360° rotatable, 90° swiveling, 5 color temperatures, 4 optics options and aluminum anodized in matte black or powder-coated in white RAL 9016.
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 1.54"L: 1.54"H: 5.24"
- Light SourceLED
- CCT/Color2700K3000K3500K4000K5700K
- CRI97
- Watt(Approx)9 W
- Lumens(Approx)630 Lm
- OpticsDirectMediumFloodWide Flood
- AdjustableAdjustable
- DimmingDim to 3-10%Dim to <1%Non-DimTRIAC/Forward/LeadingELV/Reverse/Trailing0-10V
- Controls/Network
- Power/VoltageRemoteUNV 120-277V
- Integral Emergency
- Lumen Maintenance50000 h
- CertificatesUL/CUL
- Environment
- Mounting TypeTrack/Busway
- Housing
- Housing Depth
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
Lead timeC2-STT-M
Cost
—
CONFIGURATORDESCRIPTIONDIMENSIONSLIGHT SOURCEWATT/LUMENSPOWER/CONTROLSYou reconfigured the product. To remove this message please update you custom description.Marks unavailable product configuration, refer to manufacturer’s documentation for details
