Designplan
Colorado 5 Adj. Linear In-grade RGBW LED, Trimless, Driveover, 3 lengths, 43W/64W/85W, 2547-5104 lm, IP65, IP67, IP69.
 Configure
 Add to project
Designplan.
Designplan.
Designplan.

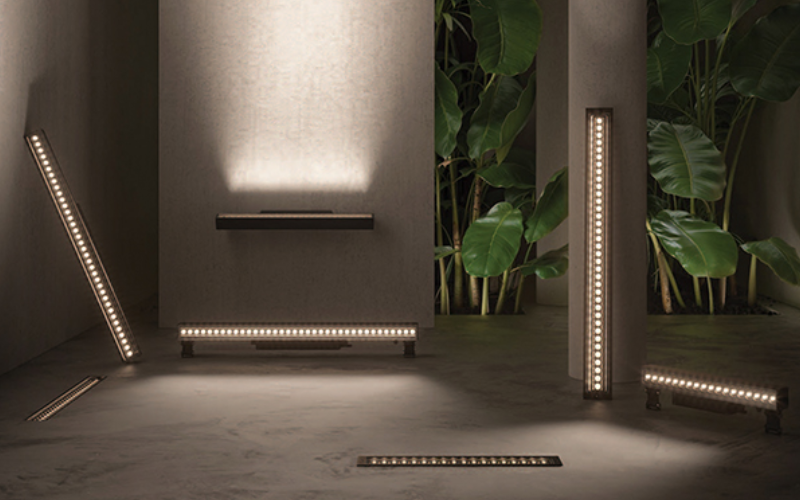

Designplan. Colorado 5 Adj. Linear In-grade RGBW LED, Trimless, Driveover, 3 lengths, 43W/64W/85W, 2547-5104 lm, IP65, IP67, IP69.
RESOURCES
DESCRIPTION
Colorado is an adjustable linear profile with a powerful performance for architectural lighting of facades up to 65.6 ft (20 m) tall. Each series is available in 3 lengths and 3 configurations (recessed flush, recessed frame and surface mounted using brackets). Colorado 5 Series is the recessed flush, driveover-rated, RGBW version. Suitable for power washing.
MORE DESCRIPTION
SPECIFICATIONS
  • Dimensions
    W: 4.76"
    L: 24.88"36.69"48.50"
    H: 4.76"
  • Light Source
    LED
  • CCT/Color
    RGBW
  • CRI
    80
  • Watt(Approx)
    43 W64 W85 W
  • Lumens(Approx)
    2547 Lm3820 Lm5104 Lm
  • Optics
    DirectAdjustable Optics
  • Adjustable
    Adjustable
  • Dimming
    Dim to 3-10%DMX/RDM
  • Controls/Network
  • Power/Voltage
    IntegralUNV 120-277V
  • Integral Emergency
  • Lumen Maintenance
    60000 h
  • Certificates
    ETL
  • Environment
    IP65IP67IP69K High-Pressure/Steam-Jet Cleaning
  • Mounting Type
    In-GradeConcrete Drive Over
  • Housing
  • Housing Depth
 SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
