Designplan

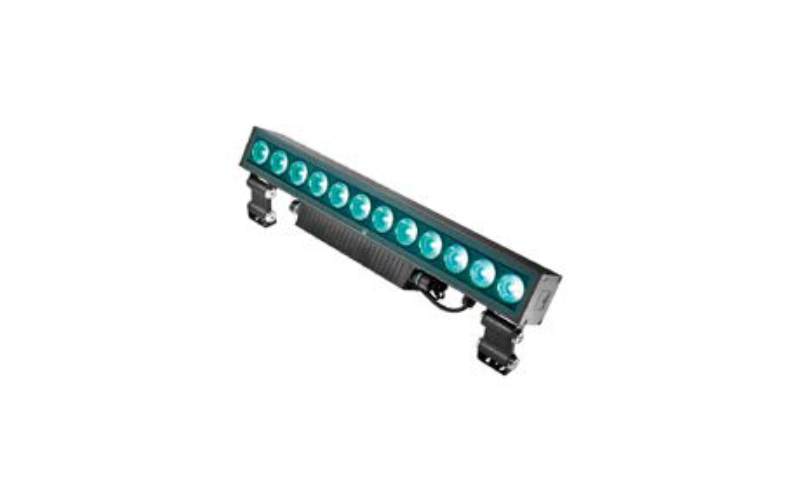

Colorado 6 Adj. Linear Surface Mount RGBW LED, w/ Brackets, 3 lengths, 43W/64W/85W, 2547-5104 lm, IP65, IP67, IP69.
Configure
Add to project
RESOURCES
-
SPEC SHEET
-
WHERE TO BUY
-
MANUFACTURER'S PAGE
-
ASK MANUFACTURER
DESCRIPTION
Colorado is an adjustable, linear profile with a powerful performance for architectural lighting of facades up to 65.6 ft (20 m) tall. Each series is available in 3 lengths and 3 configurations (recessed flush, recessed frame and surface mounted using brackets). Colorado 6 Series is the surface mounted (ceiling, wall, floor), adjustable with brackets, RGBW version.
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 2.87"L: 24.61"36.42"48.23"H: 6.81"
- Light SourceLED
- CCT/ColorRGBW
- CRI80
- Watt(Approx)43 W64 W85 W
- Lumens(Approx)2547 Lm3820 Lm5104 Lm
- OpticsDirectGrazingNarrowMediumFlood
- AdjustableAdjustable
- DimmingDim to 3-10%DMX/RDM
- Controls/Network
- Power/VoltageIntegralUNV 120-277V
- Integral Emergency
- Lumen Maintenance50000 h
- CertificatesETL
- EnvironmentIP65IP67IP69K High-Pressure/Steam-Jet Cleaning
- Mounting TypeSurfaceBrackets
- Housing
- Housing Depth
