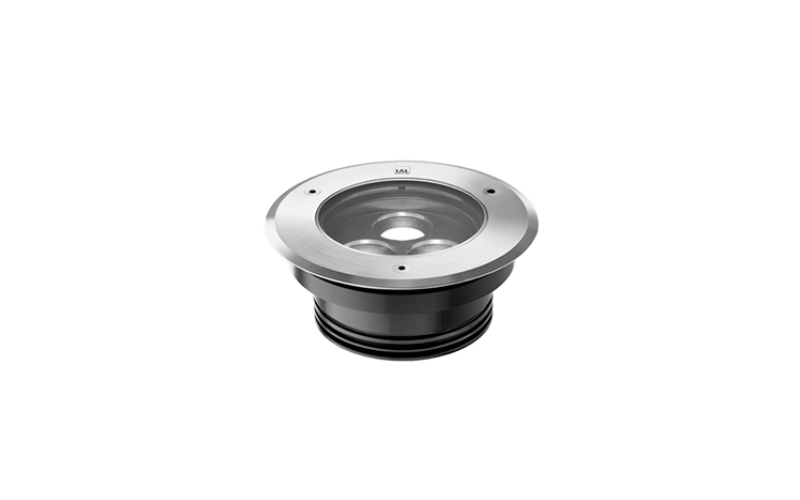

Bright 5.F Ø5.8'' LED In-Grade Uplight or Recessed Downlight IP69K.
Configure
Add to project
RESOURCES
-
SPEC SHEET
-
WHERE TO BUY
-
MANUFACTURER'S PAGE
-
ASK MANUFACTURER
DESCRIPTION
The Bright 5.F is a small, powerful IP69 outdoor recessed fixture available in white light with 8 different optics options. IP69 – suitable for power washing, not suitable for fountains or pools. Drive-over rated up to 8,800 lbs.
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 5.83"L: 5.83"
- Light SourceLED
- CCT/Color2700K3000K4000K
- CRI80 90
- Watt(Approx)14 W19 W
- Lumens(Approx)821 Lm1208 Lm
- OpticsDirectGrazingNarrowMediumFloodWide FloodAdjustable Optics
- Adjustable
- DimmingDim to 3-10%Dim to <1%Non-DimTRIAC/Forward/LeadingELV/Reverse/Trailing0-10VLutron Hi-Lume 3-wire (L3D)Lutron Hi-lume Eco (L3DAE)
- Controls/Network
- Power/VoltageRemoteUNV 120-277V120V
- Integral Emergency
- Lumen Maintenance50000 h
- CertificatesETL
- EnvironmentIP65IP69K High-Pressure/Steam-Jet CleaningIP68
- Mounting TypeCeiling RecessedWall RecessedIn-GradeTrimless DrywallConcrete Drive Over
- HousingNew Construction
- Housing Depth3.54 ''
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
Lead timeCB5F0
