Designplan
CDV Vandal Resistant Downlight, IP65 Wet Label, 9W Static White / 6W DimWarm, B.A.B.A.
 Configure
 Add to project
Designplan. CDV Vandal Resistant Downlight, IP65 Wet Label, 9W Static White / 6W DimWarm, B.A.B.A.
Designplan. CDV Vandal Resistant Downlight, IP65 Wet Label, 9W Static White / 6W DimWarm, B.A.B.A.
RESOURCES
DESCRIPTION

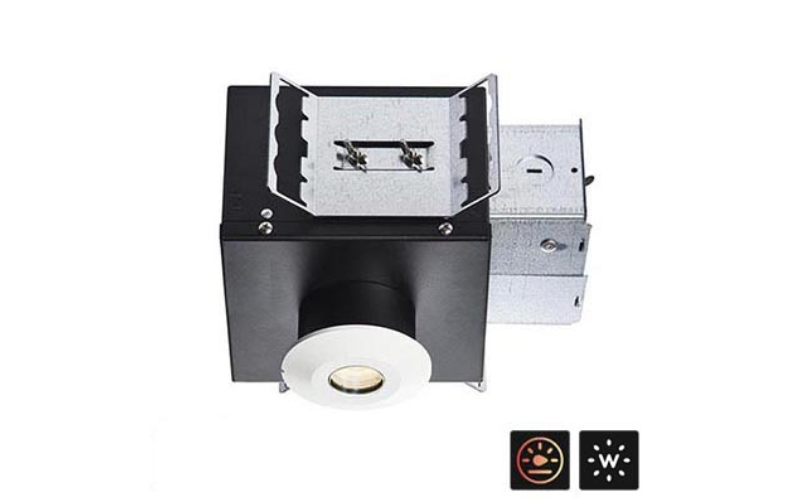

The CDV downlight is a vandal resistant, IP65 wet label fixture that is IC and Chicago Plenum rated. It is available in static white or dim to warm with 2 optics options.
MORE DESCRIPTION
SPECIFICATIONS
  • Dimensions
    W: 3.42"
    L: 3.42"
  • Light Source
    LED
  • CCT/Color
    2700K3000K3000K Dim to Warm3500K4000K
  • CRI
    90
  • Watt(Approx)
    9 W6 W
  • Lumens(Approx)
  • Optics
    DirectMediumFlood
  • Adjustable
  • Dimming
    Dim to 3-10%Dim to 1%Dim to <1%Non-DimTRIAC/Forward/LeadingELV/Reverse/Trailing0-10VLutron Hi-lume Premier 3-wire (L3D03W)Lutron Hi-lume Eco (L3DAE)
  • Controls/Network
  • Power/Voltage
    RemoteUNV 120-277V120V
  • Integral Emergency
  • Lumen Maintenance
  • Certificates
    ETLMade in USA
  • Environment
    IP65Vandalproof
  • Mounting Type
    Ceiling RecessedT-Grid Ceiling
  • Housing
    New ConstructionICChicago Plenum
  • Housing Depth
    5.3 ''
 SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
