Designplan
CUA 7'' Adjustable In-Grade LED Uplight Static / Tunable White+RGBW Driveover IP67, IP69.
Configure
Add to project
RESOURCES
-
SPEC SHEET
-
WHERE TO BUY
-
MANUFACTURER'S PAGE
-
ASK MANUFACTURER
DESCRIPTION

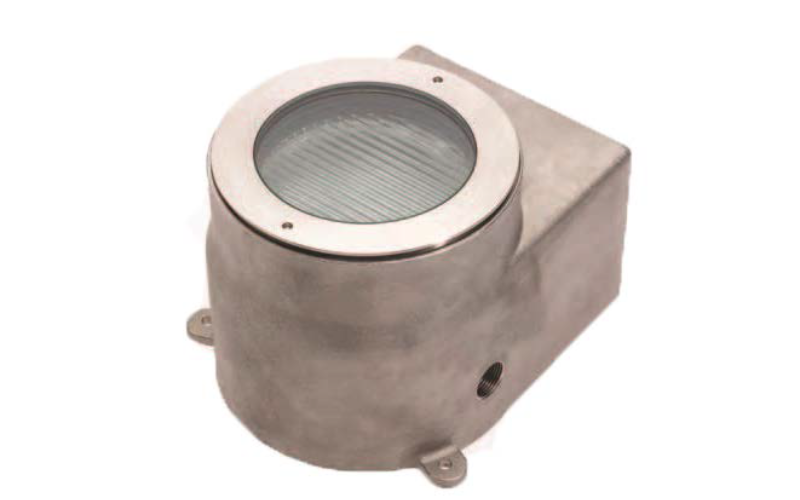

CUA is an adjustable, durable, one-piece, in-grade uplight. Powered by a high CRI Xicato LED module (static white) or Araya LED module (tunable white + RGBW) with a rotatable internal spread lens – adjustable regardless of body orientation. It is suitable for power washing with a stainless steel finish.
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 7"L: 7"
- Light SourceLED
- CCT/Color2700K3000K3500K4000KTunable White & Colors
- CRI80 90
- Watt(Approx)17 W18 W
- Lumens(Approx)1000 Lm2140 Lm
- OpticsDirectNarrowMediumAsymmetric/Wash
- Adjustable
- DimmingDim to 3-10%0-10VDMX
- Controls/NetworkBluetooth
- Power/VoltageIntegralUNV 120-277V
- Integral Emergency
- Lumen Maintenance
- CertificatesETLMade in USA
- EnvironmentIP67IP69K High-Pressure/Steam-Jet Cleaning
- Mounting TypeIn-GradeConcrete Drive Over
- Housing
- Housing Depth
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
Lead timeCUA-L
Cost
—
CONFIGURATORDESCRIPTIONDIMENSIONSLIGHT SOURCEWATT/LUMENSPOWER/CONTROLSYou reconfigured the product. To remove this message please update you custom description.Marks unavailable product configuration, refer to manufacturer’s documentation for details
BUILD CATALOG NUMBER
