Designplan
CUL 7.0'' LED In-Grade Uplight, Static / Tunable White + RGBW, Driveover, IP67, IP69.
 Configure
 Add to project

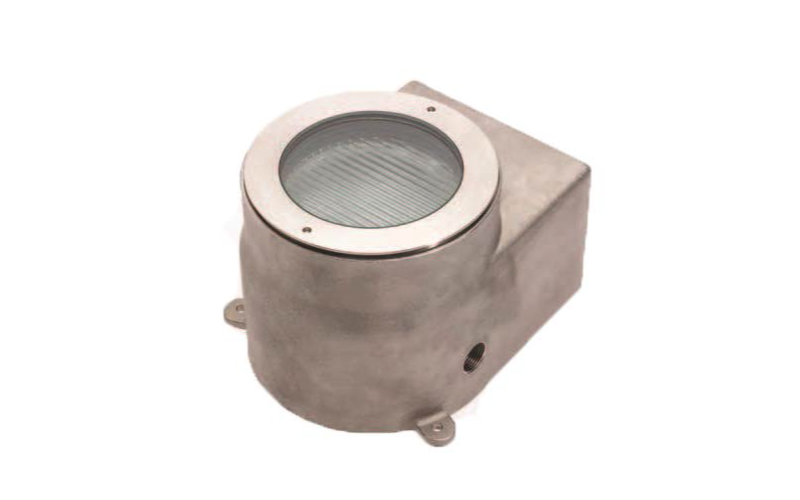

Designplan. CUL-L. 7.0'' In-Grade Uplight, Static / Tunable White + RGBW, Driveover, IP67, IP69K LED.
Designplan. CUL-L. 7.0'' In-Grade Uplight, Static / Tunable White + RGBW, Driveover, IP67, IP69K LED.
RESOURCES
DESCRIPTION
CUL is a one-piece, durable, quality, in-grade uplight. Powered by a high CRI Xicato LED module (static white) or Araya LED module (tunable white + RGBW) with a rotatable internal spread lens – adjustable regardless of body orientation. It is suitable for power washing with a stainless steel finish.
MORE DESCRIPTION
SPECIFICATIONS
  • Dimensions
    W: 7"
    L: 7"
  • Light Source
    LED
  • CCT/Color
    2700K3000K3500K4000KTunable White & Colors
  • CRI
    80 90
  • Watt(Approx)
    17 W22 W25 W33 W
  • Lumens(Approx)
    1300 Lm2000 Lm3000 Lm
  • Optics
    DirectAsymmetric/Wash
  • Adjustable
  • Dimming
    Dim to 3-10%0-10VDMX
  • Controls/Network
    Bluetooth
  • Power/Voltage
    IntegralRemoteUNV 120-277V
  • Integral Emergency
  • Lumen Maintenance
  • Certificates
    ETLMade in USA
  • Environment
    IP67IP69K High-Pressure/Steam-Jet Cleaning
  • Mounting Type
    In-GradeConcrete Drive Over
  • Housing
  • Housing Depth
 SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
