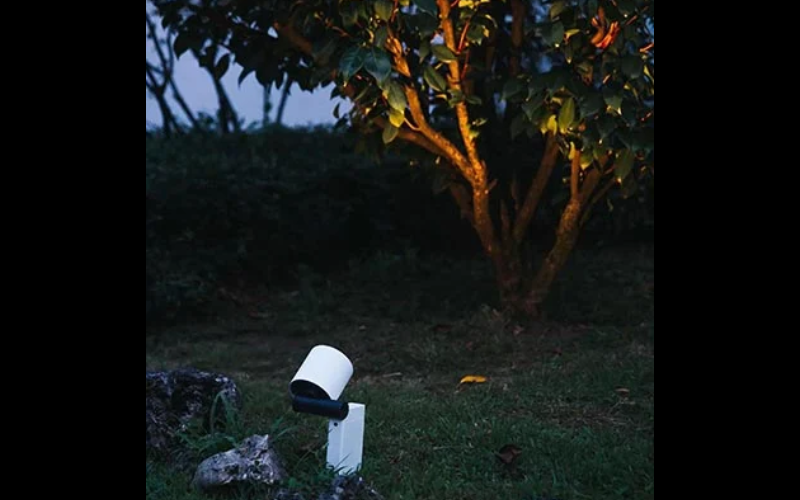

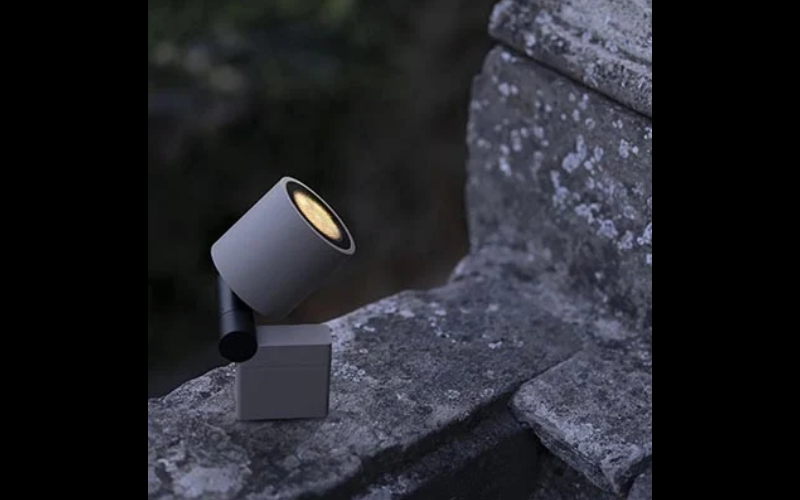

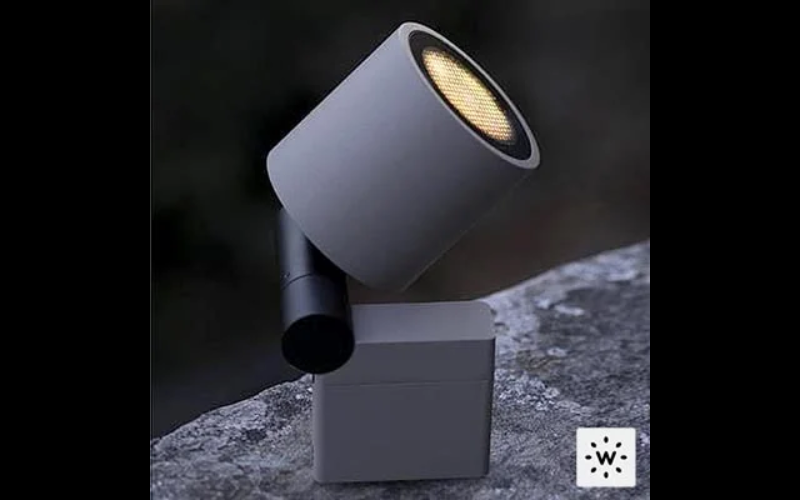

Muse Spot 01 LED Surface Mount, Ø3.9'' Head, Small or Big Box, 12W, 1288 lm, IP65.
Configure
Add to project
RESOURCES
-
SPEC SHEET
-
WHERE TO BUY
-
MANUFACTURER'S PAGE
-
ASK MANUFACTURER
DESCRIPTION
MUSE is a modular outdoor lamp system that offers multiple lighting solutions based on the needs of the user, by combining one of the 3 emission sources – CAPSULE, STILLA and SPOT – with various installation accessories. MUSE SPOT 01 is a turned aluminum cylinder attached to a small or large box that can be installed on a wall, ceiling or ground, with or without a honeycomb, and offered in 4 optic options and 4 standard finishes.
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 3.94"L: 3.86"H: 3.94"
- Light SourceLED
- CCT/Color2700K3000K
- CRI80
- Watt(Approx)12 W
- Lumens(Approx)1288 Lm
- OpticsDirectMediumFloodWide Flood
- AdjustableAdjustable
- DimmingDim to 3-10%Dim to 1%Dim to <1%Non-DimTRIAC/Forward/LeadingELV/Reverse/Trailing0-10VLutron Hi-lume Eco (L3DAE)Lutron Hi-lume 3-wire (L3DA3W)
- Controls/Network
- Power/VoltageRemoteUNV 120-277V
- Integral Emergency
- Lumen Maintenance
- Certificates
- EnvironmentIP65
- Mounting TypeSurfaceGround Surface
- Housing
- Housing Depth
