Designplan

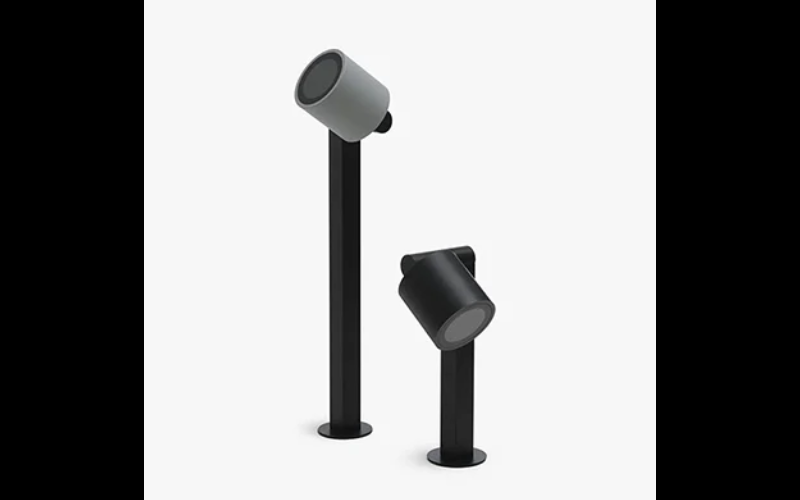

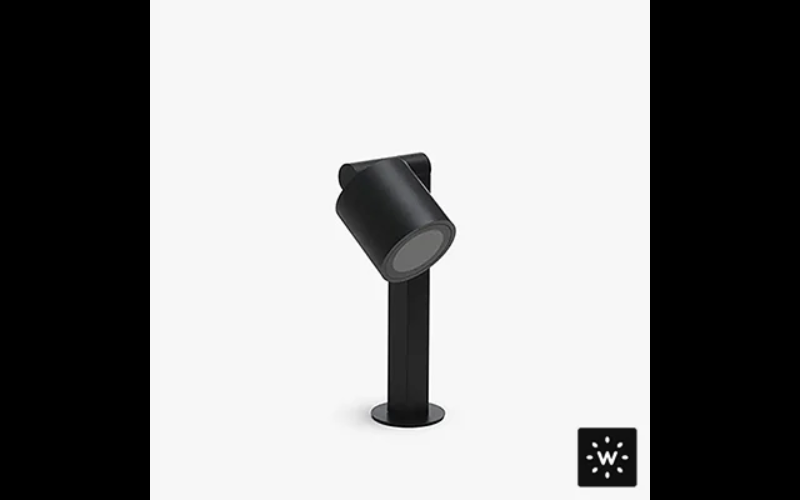

Muse Spot 01 Bollard 300 LED, Ø3.9'' x 11.8'', 12W, 1288 lm, IP65.
Configure
Add to project
RESOURCES
-
SPEC SHEET
-
WHERE TO BUY
-
MANUFACTURER'S PAGE
-
ASK MANUFACTURER
DESCRIPTION
MUSE is a modular outdoor lamp system that offers multiple lighting solutions based on the needs of the user, by combining one of the 3 emission sources – CAPSULE, STILLA and SPOT – with various installation accessories. MUSE SPOT 01 BOLLARD is a turned aluminum cylinder attached to a square pole suitable for outdoor installation. It is available in 3 heights, 4 optic options and 4 standard finishes.
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 3.9"L: 3.9"H: 11.8"
- Light SourceLED
- CCT/Color2700K3000K
- CRI80
- Watt(Approx)12 W
- Lumens(Approx)1288 Lm
- OpticsDirectMediumFloodWide Flood
- AdjustableAdjustable
- DimmingDim to 3-10%Dim to 1%Dim to <1%Non-DimTRIAC/Forward/LeadingELV/Reverse/Trailing0-10VLutron Hi-lume Eco (L3DAE)Lutron Hi-lume 3-wire (L3DA3W)
- Controls/Network
- Power/VoltageRemoteUNV 120-277V
- Integral Emergency
- Lumen Maintenance
- CertificatesETL
- EnvironmentIP65
- Mounting TypeBollard
- Housing
- Housing Depth
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
Lead timeD9020-SP-01-B-300
Cost
—
CONFIGURATORDESCRIPTIONDIMENSIONSLIGHT SOURCEWATT/LUMENSPOWER/CONTROLSYou reconfigured the product. To remove this message please update you custom description.Marks unavailable product configuration, refer to manufacturer’s documentation for details
BUILD CATALOG NUMBER
