Designplan

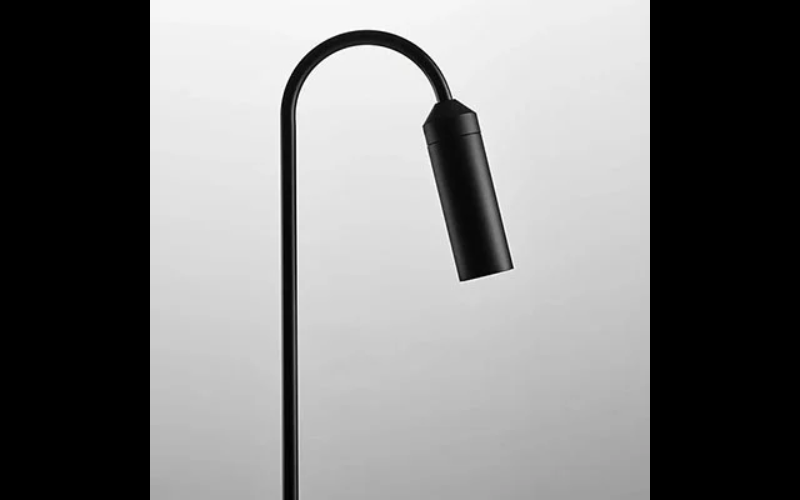

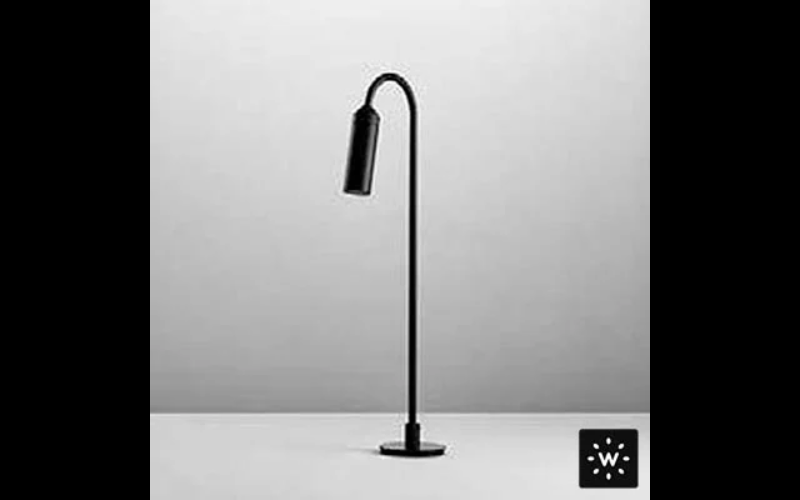

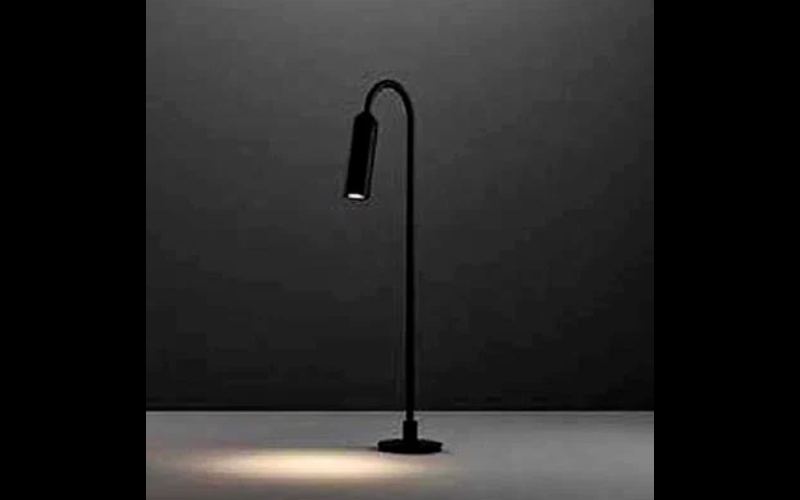

Muse Spot 02 Bend-Shape Stem 19.7'' LED, Ø1.4'' x 4.9'' Head, 2W, 236 lm, IP65.
 Configure
 Add to project
Designplan. Muse Spot 02 Bend-Shape Stem 19.7'' LED, Ø1.4'' x 4.9'' Head, 2W, 236 lm, IP65.
Designplan. Muse Spot 02 Bend-Shape Stem 19.7'' LED, Ø1.4'' x 4.9'' Head, 2W, 236 lm, IP65.
Designplan. Muse Spot 02 Bend-Shape Stem 19.7'' LED, Ø1.4'' x 4.9'' Head, 2W, 236 lm, IP65.
Designplan. Muse Spot 02 Bend-Shape Stem 19.7'' LED, Ø1.4'' x 4.9'' Head, 2W, 236 lm, IP65.
RESOURCES
DESCRIPTION
MUSE is a modular outdoor lamp system that offers multiple lighting solutions based on the needs of the user, by combining one of the 3 emission sources – CAPSULE, STILLA and SPOT – with various installation accessories. MUSE SPOT 02 BEND-SHAPE STEM is an extra resilient glass cylinder on a decorative stem that can be mounted using a base or spike. It is available in 2 stem heights, 2 color temperatures with a black finish.
MORE DESCRIPTION
SPECIFICATIONS
  • Dimensions
    W: 1.42"
    L: 4.88”
    H: 19.7"
  • Light Source
    LED
  • CCT/Color
    2700K3000K
  • CRI
    80
  • Watt(Approx)
    2 W
  • Lumens(Approx)
    236 Lm
  • Optics
    DirectMediumFlood
  • Adjustable
  • Dimming
    Dim to 3-10%Dim to 1%Dim to <1%Non-DimTRIAC/Forward/LeadingELV/Reverse/Trailing0-10VLutron Hi-lume EcoSystem (LDE1)Lutron Hi-lume 3-wire (L3DA3W)
  • Controls/Network
  • Power/Voltage
    RemoteUNV 120-277V
  • Integral Emergency
  • Lumen Maintenance
  • Certificates
    ETL
  • Environment
    IP65
  • Mounting Type
    Ground Spike/StakeBase
  • Housing
  • Housing Depth
 SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
