Designplan
Muse Stilla Wall LED Surface Mount, Ø1.4'' x 3.9'', 1.5W, 255 lm, IP65.
Configure
Add to project
RESOURCES
-
SPEC SHEET
-
WHERE TO BUY
-
MANUFACTURER'S PAGE
-
ASK MANUFACTURER
DESCRIPTION

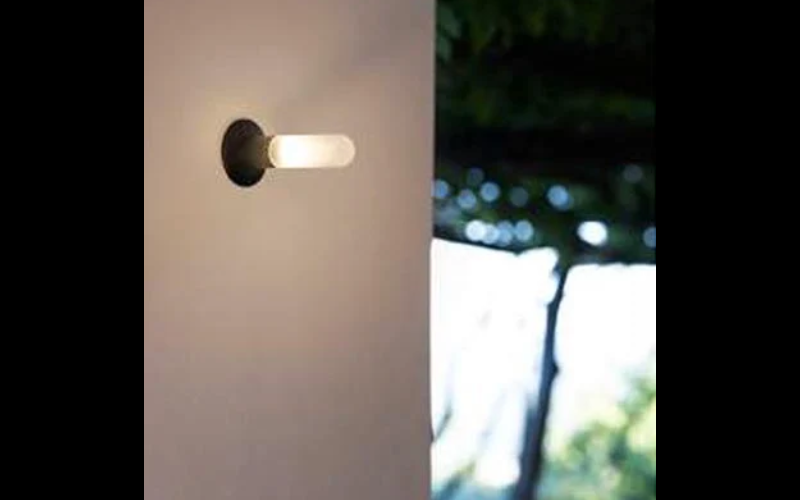

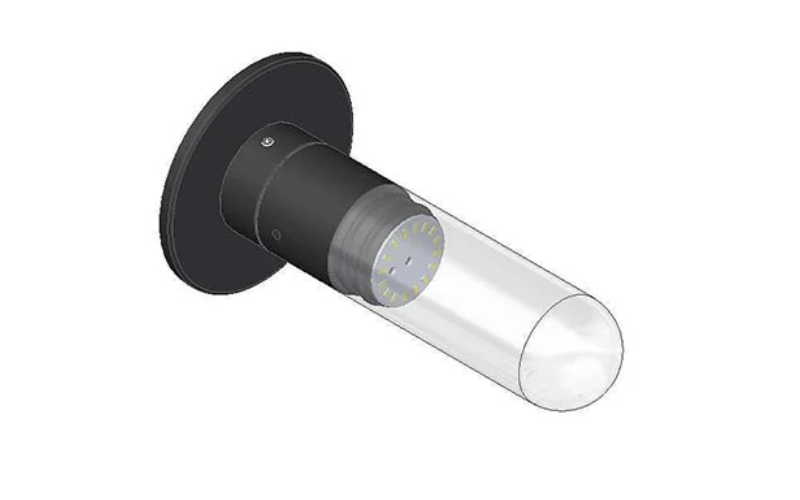

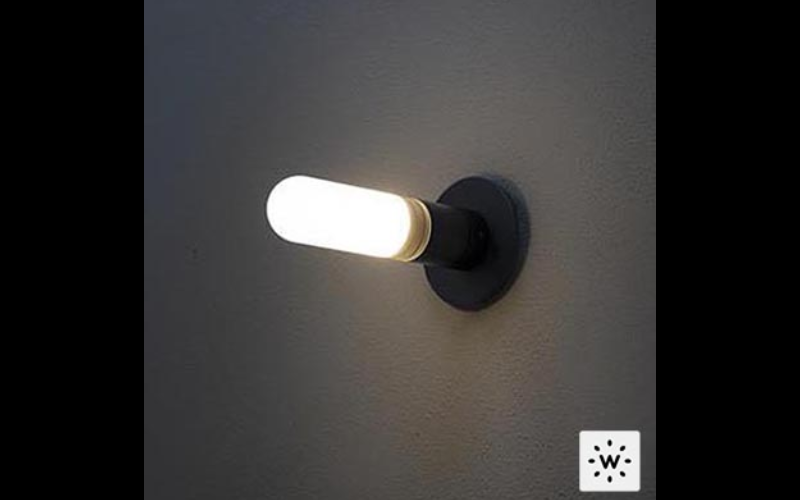

MUSE is a modular outdoor lamp system that offers multiple lighting solutions based on the needs of the user, by combining one of the 3 emission sources – CAPSULE, STILLA and SPOT – with various installation accessories. MUSE STILLA WALL is the wall mounted version with an extra resilient sandblasted glass cylinder on a compact base offered in 3.9” length with a black finish on base.
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 3.94"L: 3.03"H: 3.03"
- Light SourceLED
- CCT/Color2700K3000K
- CRI90
- Watt(Approx)1.5 W
- Lumens(Approx)255 Lm
- OpticsDirectGeneral Diffused
- Adjustable
- DimmingDim to 3-10%Dim to 1%Dim to <1%Non-DimTRIAC/Forward/LeadingELV/Reverse/Trailing0-10VLutron Hi-lume Eco (L3DAE)Lutron Hi-lume 3-wire (L3DA3W)
- Controls/Network
- Power/VoltageRemoteUNV 120-277V120V
- Integral Emergency
- Lumen Maintenance
- CertificatesETL
- EnvironmentIP65
- Mounting TypeWall Surface
- Housing
- Housing Depth
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
Lead timeD9020-SW
Cost
—
CONFIGURATORDESCRIPTIONDIMENSIONSLIGHT SOURCEWATT/LUMENSPOWER/CONTROLSYou reconfigured the product. To remove this message please update you custom description.Marks unavailable product configuration, refer to manufacturer’s documentation for details
BUILD CATALOG NUMBER
