Designplan
Flex Track Line Linear Flexible LED Strip, 8W / 16W Static / 12W Tunable or DimWarm, 205-650 lm, IP65, IP68.
Configure
Add to project
RESOURCES
-
SPEC SHEET
-
WHERE TO BUY
-
MANUFACTURER'S PAGE
-
ASK MANUFACTURER
DESCRIPTION

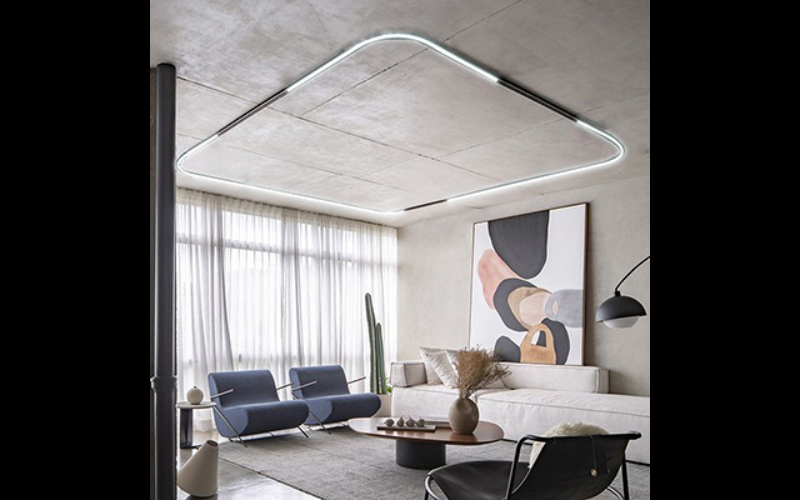

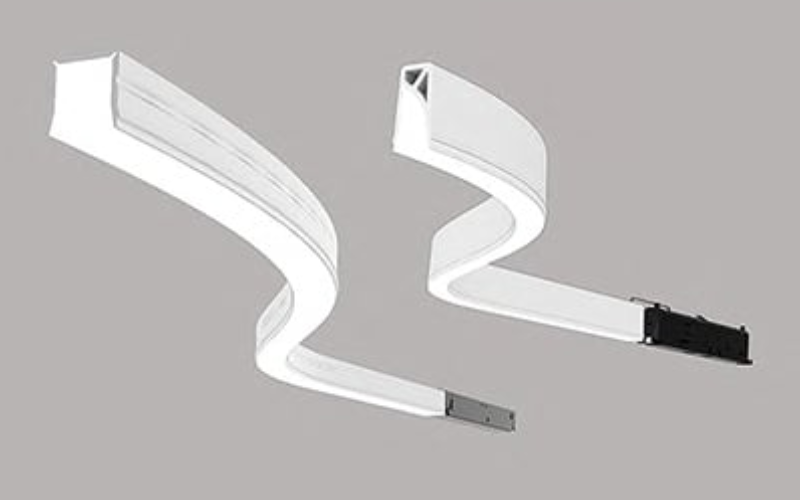

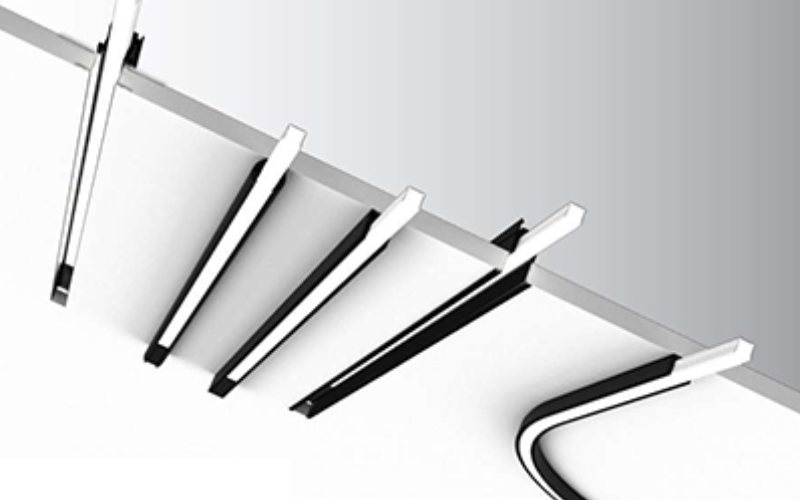

Flex Track Line is a linear flexible LED strip suitable for installation in 48V tracks and compatible with different applications: ceiling, recessed, trimless or suspension. It is the perfect flexible solution for soft, ambient lighting in commercial or residential areas creating a homogeneous result. Available in lengths from 19.7” to 118.1”. Customized lengths on request (up to 46 ft).
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 0.63"L: 19.69”39.37”78.74”118.11”H: 0.63"
- Light SourceLED
- CCT/Color2700K3000K3000K Dim to Warm3500K4000KTunable White
- CRI90
- Watt(Approx)2.44 W/Ft4.88 W/Ft3.65 W/Ft
- Lumens(Approx)110 Lm/Ft82 Lm/Ft62 Lm/Ft197 Lm/Ft
- OpticsDirectGeneral Diffused
- Adjustable
- DimmingDim to 3-10%Non-DimDALI
- Controls/NetworkCasambi
- Power/VoltageRemote
- Integral Emergency
- Lumen Maintenance50000 h
- CertificatesUL/CUL
- EnvironmentIP68
- Mounting TypeTrack/Busway
- Housing
- Housing Depth
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
