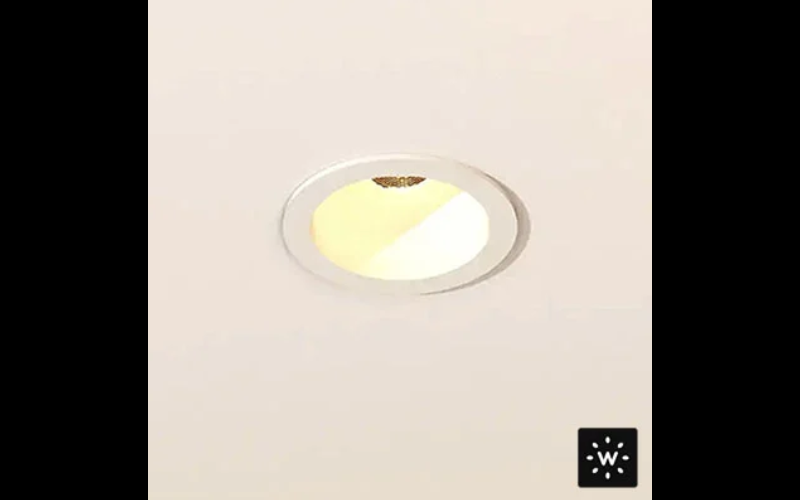

Helax SML Beach Recessed LED Downlight, Ø2.5'', 4.0W, 450 lm, IP65.
Configure
Add to project
RESOURCES
-
SPEC SHEET
-
WHERE TO BUY
-
MANUFACTURER'S PAGE
-
ASK MANUFACTURER
DESCRIPTION

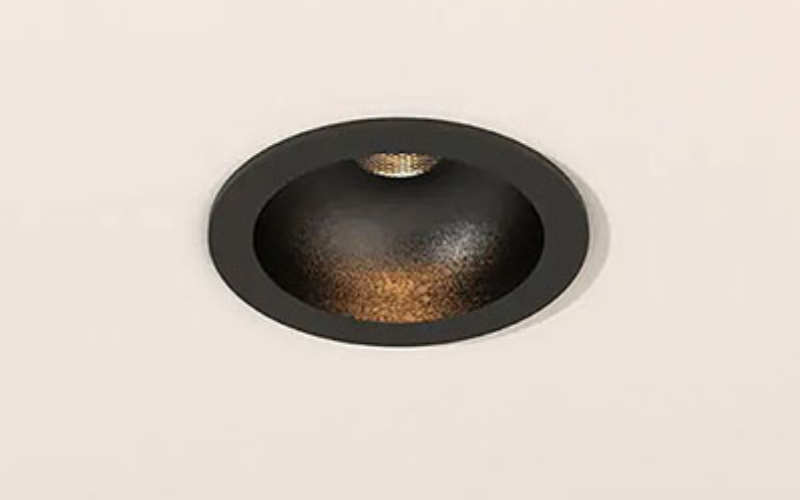

Helax SML Beach is a round, recessed LED downlight suitable for outdoor installation on ceilings and available with an ingress protection of IP65 Beach for use in aggressive surroundings such as swimming pools and coastal areas. It comes in 2 static white temperatures, and textured white or black standard finishes. Suitable for natatoriums.
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 2.52"L: 2.52"
- Light SourceLED
- CCT/Color2700K3000K
- CRI90
- Watt(Approx)4.1 W
- Lumens(Approx)450 Lm
- OpticsDirectMediumFloodWide Flood
- Adjustable
- DimmingDim to 3-10%Dim to 1%Dim to <1%Non-DimTRIAC/Forward/LeadingELV/Reverse/Trailing0-10VLutron Hi-lume Eco (L3DAE)Lutron Hi-lume 3-wire (L3DA3W)
- Controls/Network
- Power/VoltageRemoteUNV 120-277V120V
- Integral Emergency
- Lumen Maintenance
- CertificatesETL
- EnvironmentIP65
- Mounting TypeCeiling RecessedT-Grid Ceiling
- HousingNew Construction
- Housing Depth2.52 ''
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
Lead timeHELAX-SML-BEACH
Cost
—
CONFIGURATORDESCRIPTIONDIMENSIONSLIGHT SOURCEWATT/LUMENSPOWER/CONTROLSYou reconfigured the product. To remove this message please update you custom description.Marks unavailable product configuration, refer to manufacturer’s documentation for details
