DESCRIPTION

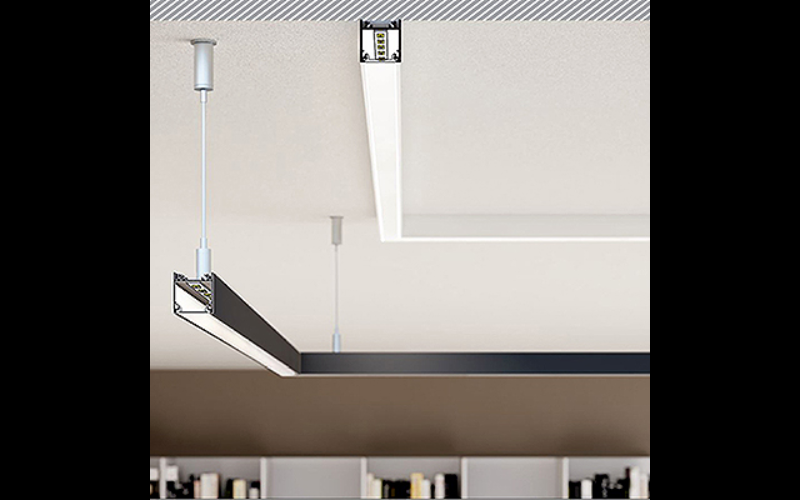

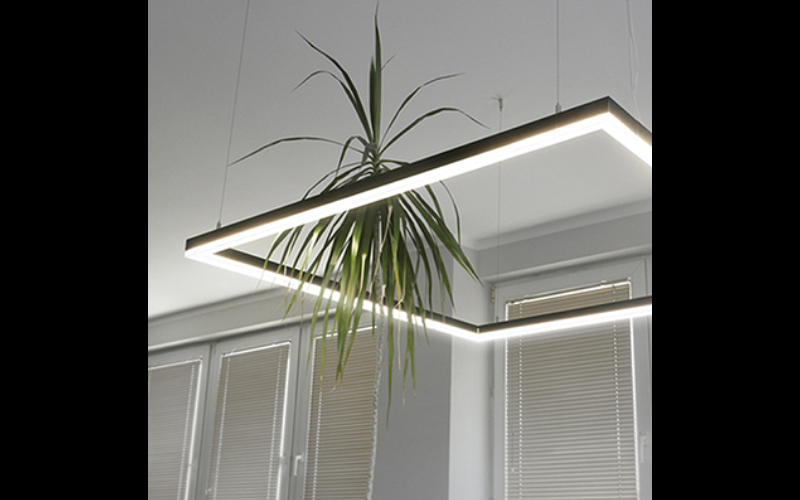

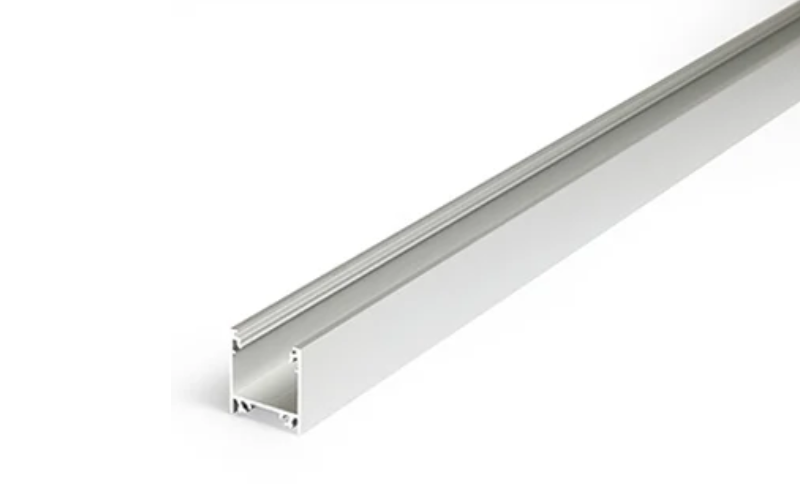

Linea 20 is a surface or suspended LED linear profile with a continuous light line (with 120 LEDs / 3.3 ft and opal diffuser applied) and angled illuminated connections. It comes in four lengths, 39.4”, 78.7”, 118.1” or 159.5”. With a body made of aluminum, it comes in 4 standard finishes and over 20 different accessories.
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 0.91"L: 39.37"78.74"118.11"159.45"H: 0.99"
- Light SourceLED
- CCT/Color2700K3000K3500K4000K
- CRI85
- Watt(Approx)5.49 W/Ft
- Lumens(Approx)620 Lm/Ft
- OpticsDirectGeneral Diffused
- Adjustable
- DimmingDim to 3-10%Dim to 1%Dim to <1%Non-DimTRIAC/Forward/LeadingELV/Reverse/Trailing0-10VLutron Hi-lume Eco (L3DAE)Lutron Hi-lume 3-wire (L3DA3W)
- Controls/Network
- Power/VoltageRemote
- Integral Emergency
- Lumen Maintenance
- Certificates
- Environment
- Mounting TypePendantCeiling Surface
- Housing
- Housing Depth
