MIDI LINE - Top Light LL10 Bendable LED Strip IP65, IP68, Steam Rooms ONLY.
Configure
Add to project
RESOURCES
-
SPEC SHEET
-
WHERE TO BUY
-
MANUFACTURER'S PAGE
-
ASK MANUFACTURER
DESCRIPTION

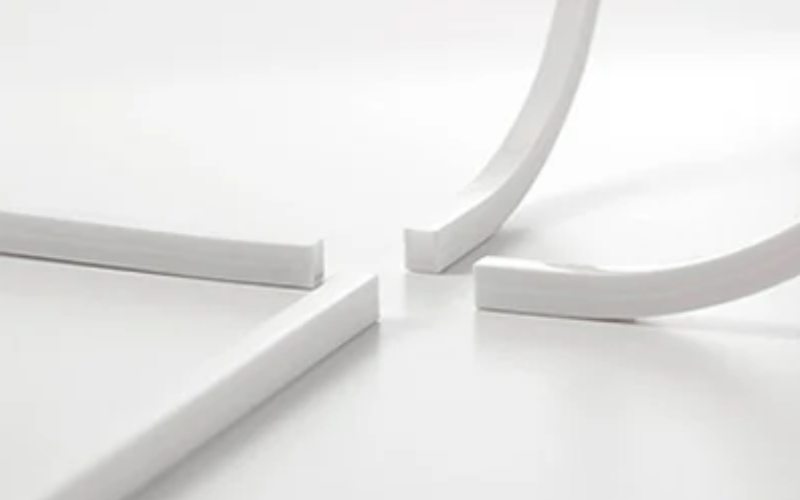

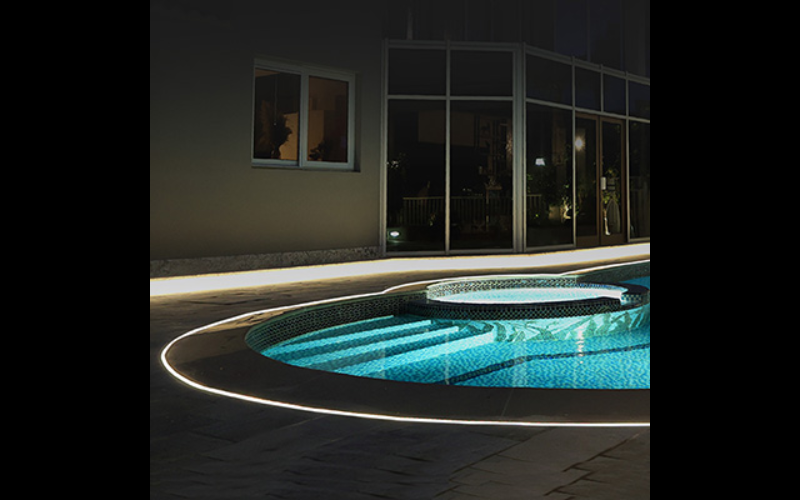

MIDI LINE is an easy to install, bendable LED strip that is IP65/IP68-rated making it ideal for swimming pools or fountains for panel installation in reinforced concrete with tiles or pool liner or indoor/outdoor areas. It is available in Side, Top or Total Light with static white, tunable white or RGB. White PVC outercase and opal resin guarantee protection against UV rays and the corrosive action of salt and sodium hypochlorite. Not cuttable in the field. Suitable for Steam Rooms NOT Saunas.
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 0.39"L: 3.28 ftH: 0.43"
- Light SourceLED
- CCT/Color2400K or less2700K3000K4500K5000K
- CRI85
- Watt(Approx)11 W
- Lumens(Approx)345 Lm420 Lm395 Lm375 Lm
- OpticsDirectGeneral Diffused
- Adjustable
- DimmingDim to 3-10%Dim to 1%Dim to <1%Non-DimTRIAC/Forward/LeadingELV/Reverse/Trailing0-10VLutron Hi-lume Eco (L3DAE)Lutron Hi-lume 3-wire (L3DA3W)
- Controls/Network
- Power/VoltageRemoteUNV 120-277V
- Integral Emergency
- Lumen Maintenance50000 h
- CertificatesUL/CUL
- EnvironmentIP65Submersible IP68Corrosion Resistant
- Mounting TypeSurfaceIn-GradeConcrete
- Housing
- Housing Depth
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
Lead timeLL10-TOP LIGHT
Cost
—
CONFIGURATORDESCRIPTIONDIMENSIONSLIGHT SOURCEWATT/LUMENSPOWER/CONTROLSYou reconfigured the product. To remove this message please update you custom description.Marks unavailable product configuration, refer to manufacturer’s documentation for details
