Designplan
EASY LINE - Transparent LLRGB4 / LLRGBW4 Bendable LED Strip, Various Lengths, 15.5W / 480 lm (RGB), 18W / 850 lm (RGBW), IP68.
Configure
Add to project
RESOURCES
-
SPEC SHEET
-
WHERE TO BUY
-
MANUFACTURER'S PAGE
-
ASK MANUFACTURER
DESCRIPTION

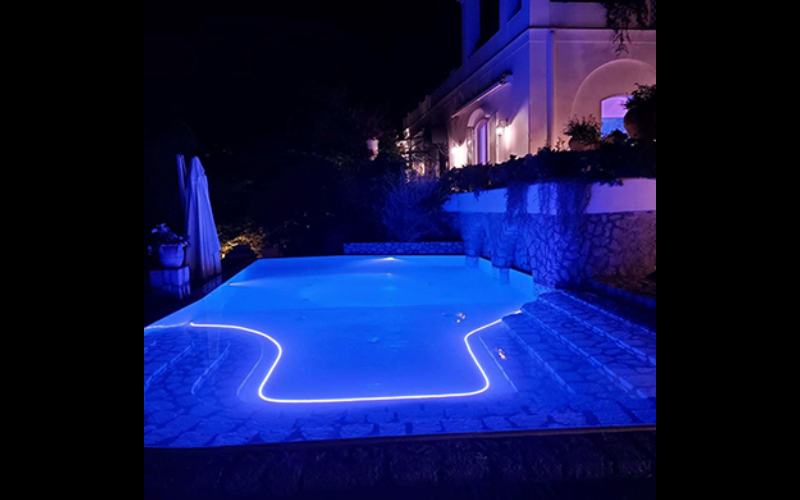

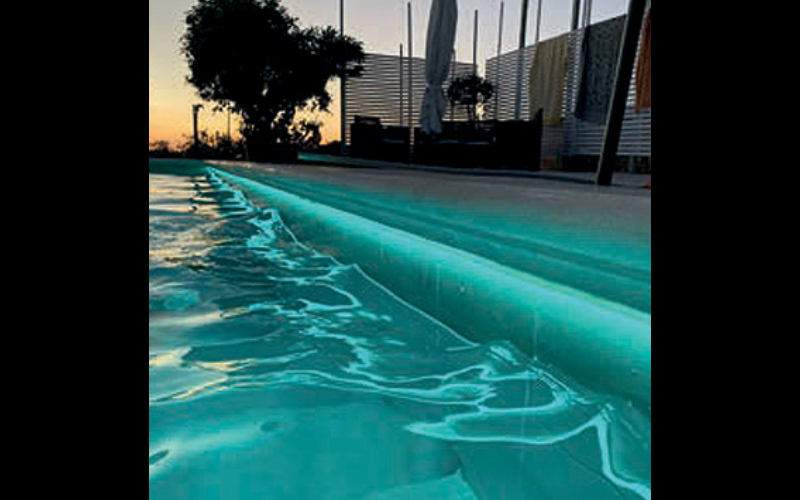

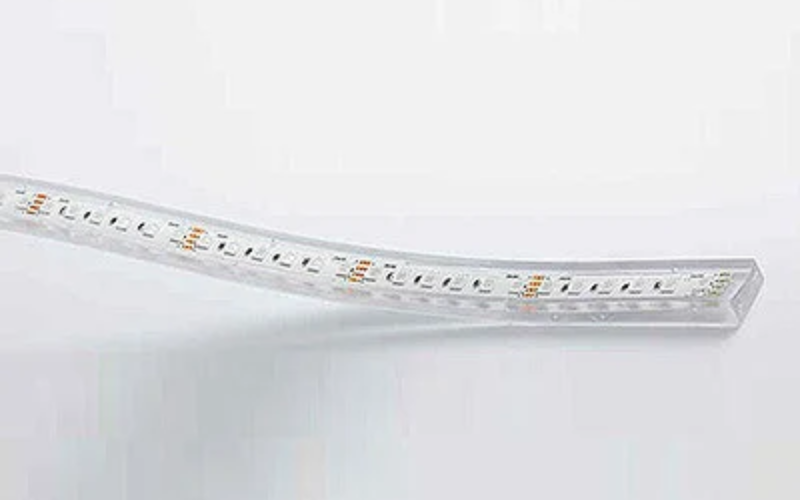

EASY LINE is a vertical, bendable LED strip that is IP65-IP68 rated ideal for fountains or swimming pools for panel installation in reinforced concrete with tiles or pool liner. It is available in Transparent, Frost, Clear or Total Light with static white, tunable white or RGB, and guarantees protection against UV rays and the corrosive action of salt and sodium hypochlorite. EASY LINE Transparent has a transparent outercasing. Not cuttable in the field.
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 0.55"L: Run length (inch)H: 0.26"
- Light SourceLED
- CCT/ColorRGBRGBW
- CRI80
- Watt(Approx)15.5 W18 W
- Lumens(Approx)480 Lm850 Lm
- OpticsDirectGeneral Diffused
- Adjustable
- DimmingDim to 3-10%DALIDMX/RDM
- Controls/Network
- Power/VoltageRemoteUNV 120-277V
- Integral Emergency
- Lumen Maintenance50000 h
- CertificatesUL/CUL
- EnvironmentIP68
- Mounting TypeSurface
- Housing
- Housing Depth
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
Lead timeLLRGB-RGBW4-TRANSPARENT
Cost
—
CONFIGURATORDESCRIPTIONDIMENSIONSLIGHT SOURCEWATT/LUMENSPOWER/CONTROLSYou reconfigured the product. To remove this message please update you custom description.Marks unavailable product configuration, refer to manufacturer’s documentation for details
BUILD CATALOG NUMBER
