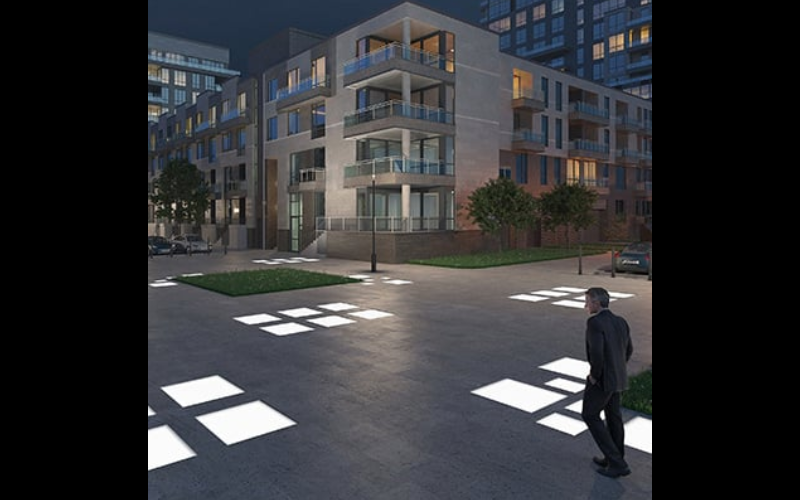

MIN / MAX Quadrato In-Grade LED Driveover 5 sizes IP67.
Configure
Add to project
RESOURCES
-
SPEC SHEET
-
WHERE TO BUY
-
MANUFACTURER'S PAGE
-
ASK MANUFACTURER
DESCRIPTION
MIN / MAX Quadrato is a square, IP67-rated LED luminaire for flush installation on floors in indoor or outdoor areas. It is available in 5 different sizes with antislip or sandblasted glass. Driveover rated up to 11,000 lbs. Pressure switch on request. Can be ordered in IP68 stainless steel version suitable for fountains – see Fountain Lighting section.
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 9.84"19.69"29.53"39.37"49.21"L: 9.84"19.69"29.53"39.37"49.21"
- Light SourceLED
- CCT/Color2700K3000K4000K
- CRI
- Watt(Approx)15 W30 W45 W60 W76 W
- Lumens(Approx)800 Lm4000 Lm
- OpticsDirectGeneral Diffused
- Adjustable
- DimmingDim to 3-10%0-10V
- Controls/Network
- Power/VoltageRemoteUNV 120-277V
- Integral Emergency
- Lumen Maintenance
- CertificatesUL/CUL
- EnvironmentIP67
- Mounting TypeIn-GradeConcrete
- Housing
- Housing Depth
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
Lead timeLM07-QUADRATO-67
