Eye L 130 Ceiling LED, Surface, Floodlight or Recessed, 8W, 490-610 lm, IP67.
Configure
Add to project
RESOURCES
-
SPEC SHEET
-
WHERE TO BUY
-
MANUFACTURER'S PAGE
-
ASK MANUFACTURER
DESCRIPTION

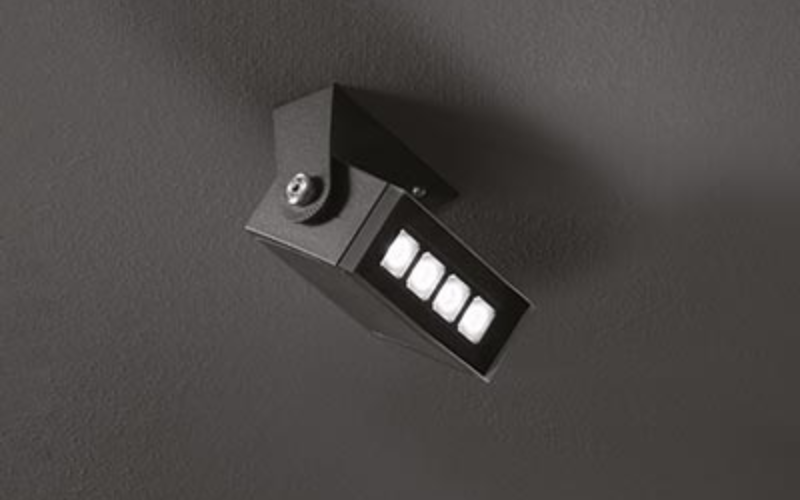

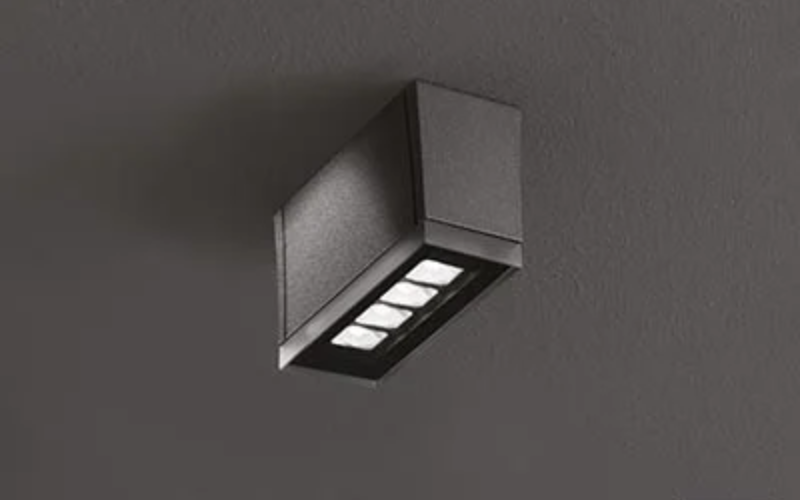

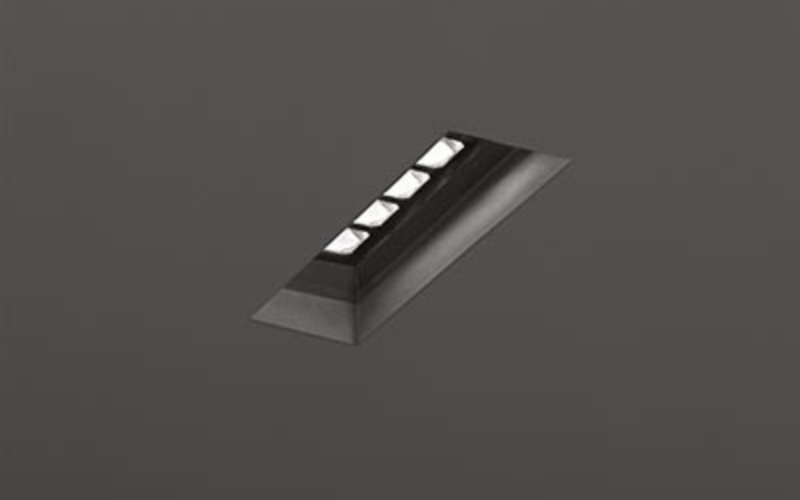

EYE L 130 is a linear outdoor ceiling lamp that comes in recessed, surface-mounted, or floodlight versions with an IP67 rating and an impact resistance of IK10. It offers high luminous efficiency and perfect beam control with 5 optics options: spot, medium, flood, elliptical and grazing.
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 1.9"4.3"L: 5.1"5.7"5.3"H: 3"4.3"
- Light SourceLED
- CCT/Color2700K3000K
- CRI90
- Watt(Approx)8 W
- Lumens(Approx)490 Lm610 Lm589 Lm592 Lm515 Lm
- OpticsDirectGrazingNarrowFlood
- AdjustableAdjustable
- DimmingDim to 3-10%0-10V
- Controls/Network
- Power/VoltageIntegralUNV 120-277V
- Integral Emergency
- Lumen Maintenance60000 h
- CertificatesETL
- EnvironmentIP67
- Mounting TypeCeiling SurfaceCeiling RecessedTrunnionDrywall
- HousingNew Construction
- Housing Depth3.7 ''
