Designplan
Mira 65 Recessed LED Uplight.
Configure
Add to project




RESOURCES
-
SPEC SHEET
-
WHERE TO BUY
-
MANUFACTURER'S PAGE
-
ASK MANUFACTURER
DESCRIPTION

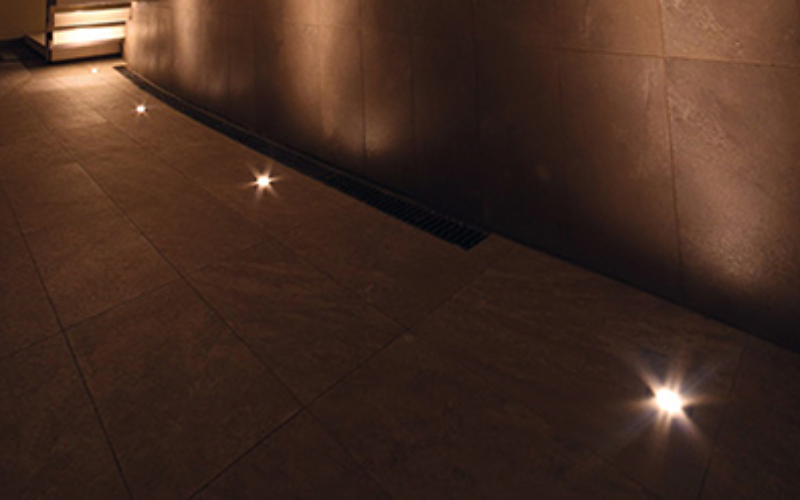

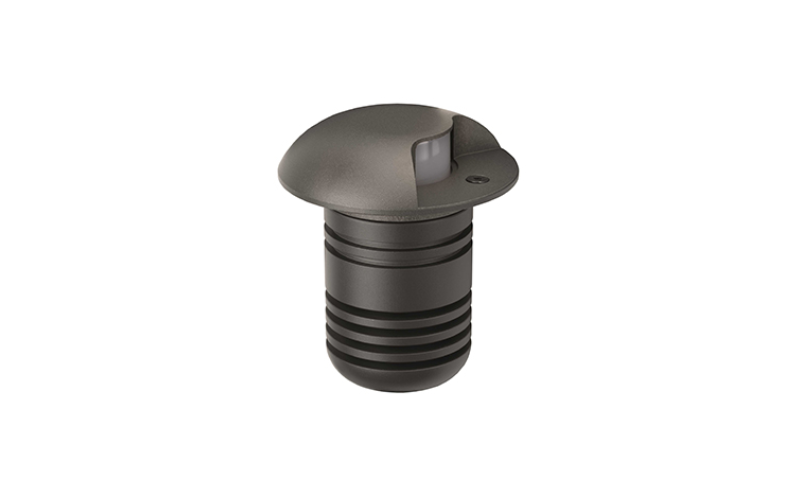

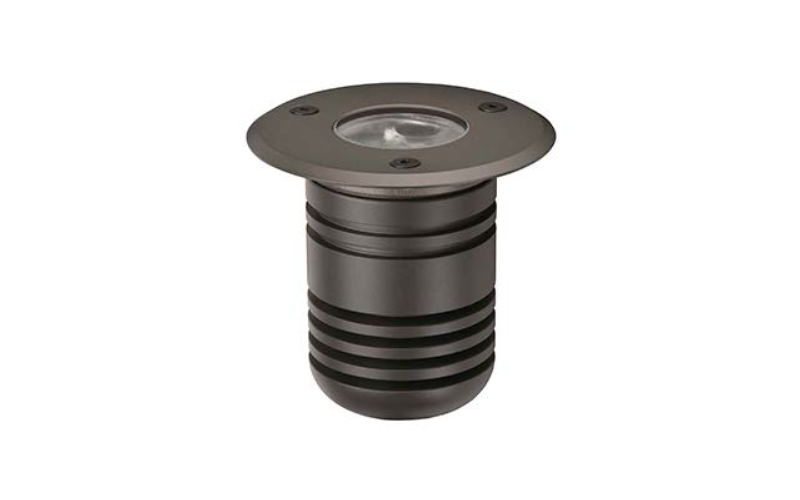

MIRA 65 is a compact, recessed LED uplight suitable for outdoor installation, illuminating paths with precision as well as minimum impact. It is available with 10 different optics and 2 standard finishes, gray or graphite. Also available for wall installation.
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 3.2"L: 3.2"
- Light SourceLED
- CCT/Color3000K4000K
- CRI80 90
- Watt(Approx)5 W
- Lumens(Approx)294 Lm
- OpticsDirectPatternMediumFloodWide FloodVolumetric
- Adjustable
- DimmingDim to 3-10%TRIAC/Forward/LeadingELV/Reverse/Trailing0-10V
- Controls/Network
- Power/VoltageRemote
- Integral Emergency
- Lumen Maintenance50000 h
- CertificatesETL
- EnvironmentIP67
- Mounting TypeIn-Grade
- Housing
- Housing Depth
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
Lead timeLNMI30IPT
—
