Designplan

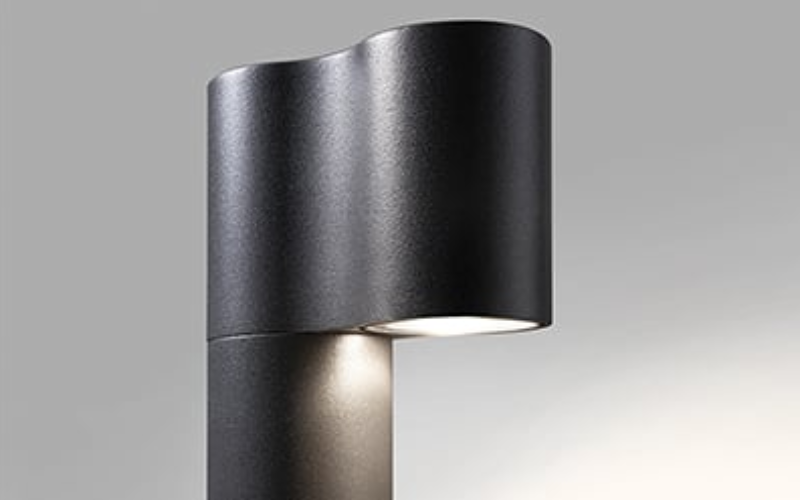

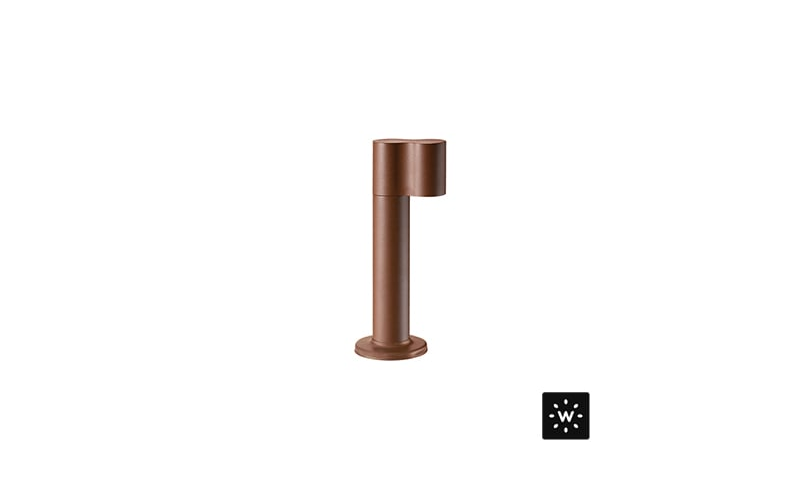

Intono B 1.0 LED Bollard, 4.9'' x 11.8'' height, 9W, 331 lm, IP66.
Configure
Add to project
RESOURCES
-
SPEC SHEET
-
WHERE TO BUY
-
MANUFACTURER'S PAGE
-
ASK MANUFACTURER
DESCRIPTION

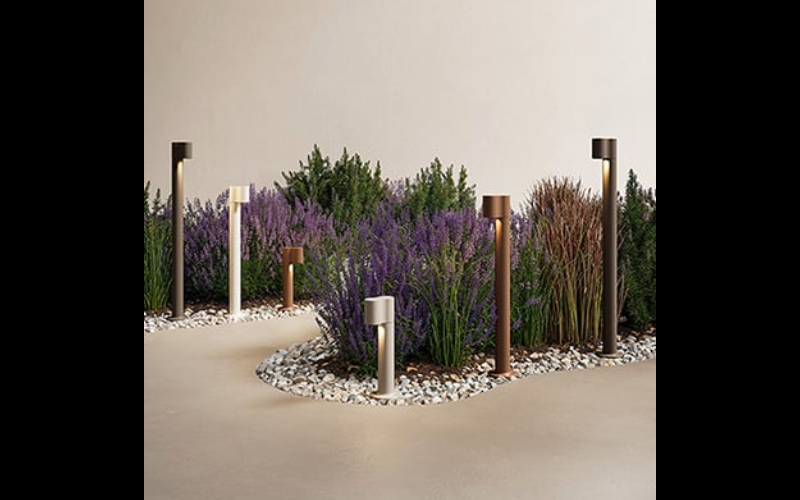

Intono B is a new dimension to the Intono family – a bollard that echoes the fluid lines of the wall- and ceiling-mounted versions. It is available in 3 heights, with 2 different optics with targeted light distribution that enables bollards to be spaced 16.4 ft apart. Intono B 1.0 is the 11.8 inch version offered in 4 color temperatures and 4 standard finishes.
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 4.88"L: 4.88"H: 11.81"
- Light SourceLED
- CCT/Color2400K or less2700K3000K4000K
- CRI80
- Watt(Approx)9 W
- Lumens(Approx)331 Lm
- OpticsDirectGeneral DiffusedAsymmetric/Wash
- Adjustable
- DimmingDim to 3-10%Dim to <1%Non-DimTRIAC/Forward/LeadingELV/Reverse/Trailing0-10VLutron Hi-lume Premier Eco (L3D0E)Lutron Hi-lume Eco (L3DAE)
- Controls/Network
- Power/VoltageRemoteUNV 120-277V
- Integral Emergency
- Lumen Maintenance60000 h
- CertificatesETL
- EnvironmentIP66
- Mounting TypeBollardGround Spike/Stake
- Housing
- Housing Depth
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
Lead timeNB1010
Cost
—
CONFIGURATORDESCRIPTIONDIMENSIONSLIGHT SOURCEWATT/LUMENSPOWER/CONTROLSYou reconfigured the product. To remove this message please update you custom description.Marks unavailable product configuration, refer to manufacturer’s documentation for details
BUILD CATALOG NUMBER
