Neva Pro 1.0-1.2 Surface Mt. LED Linear Profile, Various Lengths, 18W-63W, IP66/IP67.
Configure
Add to project
RESOURCES
-
SPEC SHEET
-
WHERE TO BUY
-
MANUFACTURER'S PAGE
-
ASK MANUFACTURER
DESCRIPTION

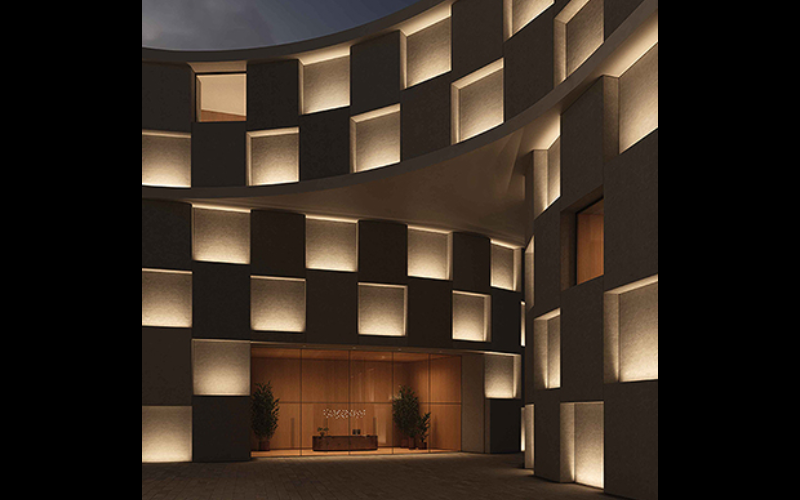

The Neva Pro 1 series are frameless linear profiles designed to enhance wall and facades with new generation optics from narrow, well-defined beams to diffuse outputs with a softer, more uniform distribution, to asymmetrical solutions ideal for wall-washing on vertical surfaces. Available in 4 different lengths with in-grade housing for recessed applications or adjustable brackets for surface mount.
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 1.46"L: 24.25"36.06"59.72"H: 2.28"
- Light SourceLED
- CCT/Color2400K or less2700K3000K4000K
- CRI80
- Watt(Approx)18 W25 W27 W38 W45 W63 W
- Lumens(Approx)1739 Lm2392 Lm2609 Lm3588 Lm4348 Lm5980 Lm

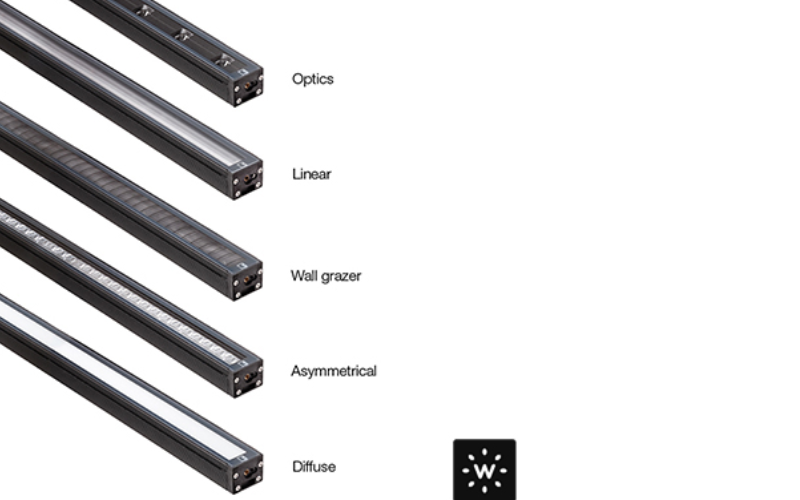

- OpticsDirectGrazingNarrowMediumFloodAdjustable OpticsGeneral DiffusedAsymmetric/Wash
- Adjustable
- DimmingDim to 3-10%Dim to <1%Non-DimTRIAC/Forward/LeadingELV/Reverse/Trailing0-10VLutron Hi-lume Premier Eco (L3D0E)Lutron Hi-lume Eco (L3DAE)
- Controls/Network
- Power/VoltageRemoteUNV 120-277V
- Integral Emergency
- Lumen Maintenance50000 h
- CertificatesETL
- EnvironmentIP66IP67
- Mounting TypeSurface
- Housing
- Housing Depth
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
