Designplan
Neva Pro 3.0-3.2 Surface Mt. LED Linear Profile, Integral, 22W-51W, IP66/IP67.
Configure
Add to project




RESOURCES
-
SPEC SHEET
-
WHERE TO BUY
-
MANUFACTURER'S PAGE
-
ASK MANUFACTURER
DESCRIPTION

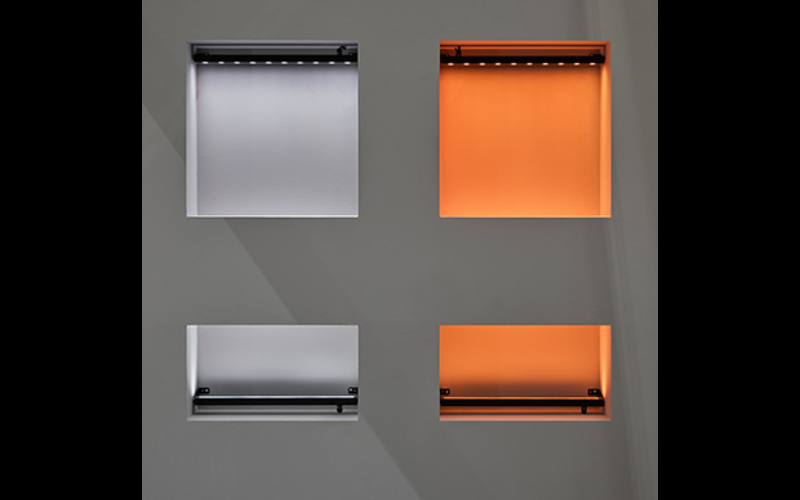

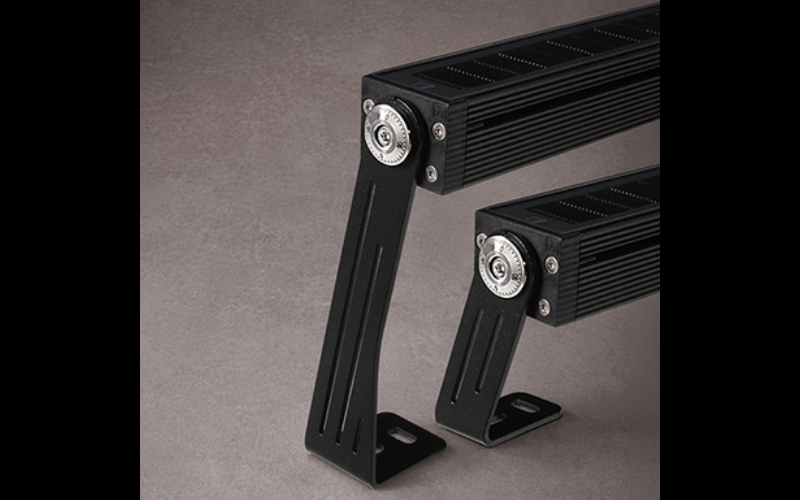

The Neva Pro 3 series are frameless linear profiles designed to enhance wall and facades with new generation optics from narrow, well-defined beams to diffuse outputs with a softer, more uniform distribution, to asymmetrical solutions ideal for wall-washing on vertical surfaces. Available in 3 different lengths with in-grade housing for recessed applications or adjustable brackets for surface mount.
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 1.46"L: 24.25"36.06"59.72"H: 2.91"
- Light SourceLED
- CCT/Color2400K or less2700K3000K4000K
- CRI80
- Watt(Approx)22 W32 W51 W
- Lumens(Approx)2176 Lm3264 Lm5440 Lm

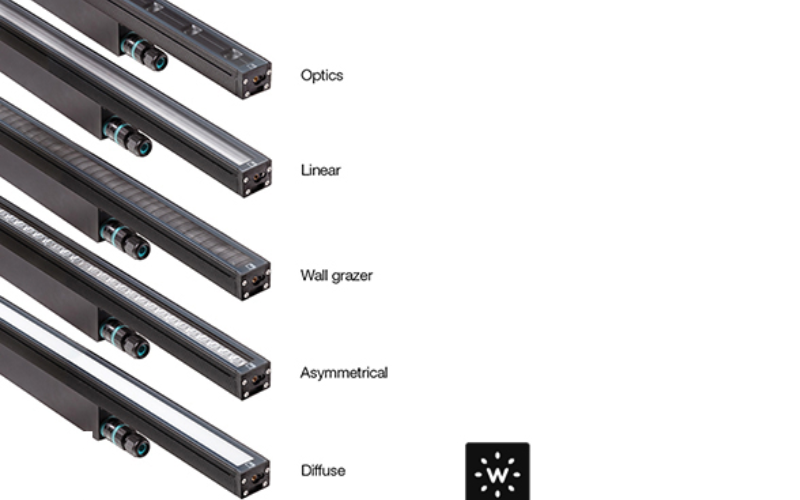

- OpticsDirectNarrowMediumFloodAdjustable OpticsGeneral DiffusedAsymmetric/Wash
- Adjustable
- DimmingDim to 3-10%Non-Dim0-10VDALI
- Controls/Network
- Power/Voltage
- Integral Emergency
- Lumen Maintenance50000 h
- CertificatesETL
- EnvironmentIP66IP67
- Mounting TypeSurface
- Housing
- Housing Depth
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
Lead timeNP3-S
—
