Designplan
Neva Pro 5.0-5.2 Surface Mt. Linear Profile, Various Lengths, 28-71W, Tunable White, IP66/IP67.
Configure
Add to project
RESOURCES
-
SPEC SHEET
-
WHERE TO BUY
-
MANUFACTURER'S PAGE
-
ASK MANUFACTURER
DESCRIPTION

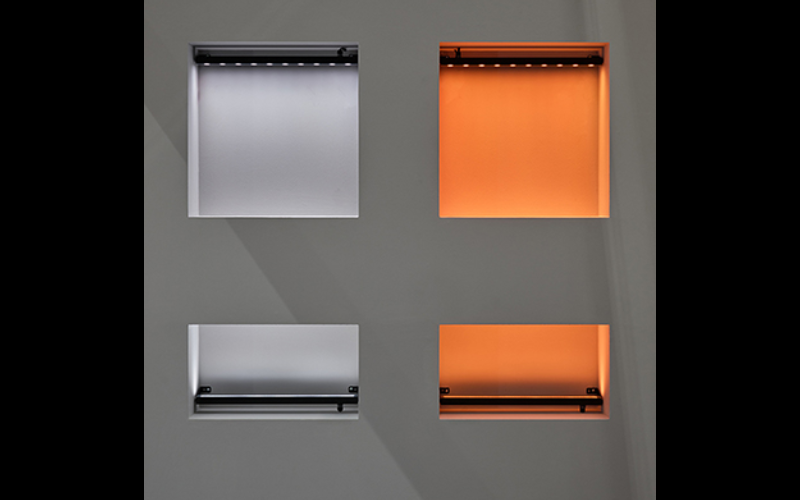

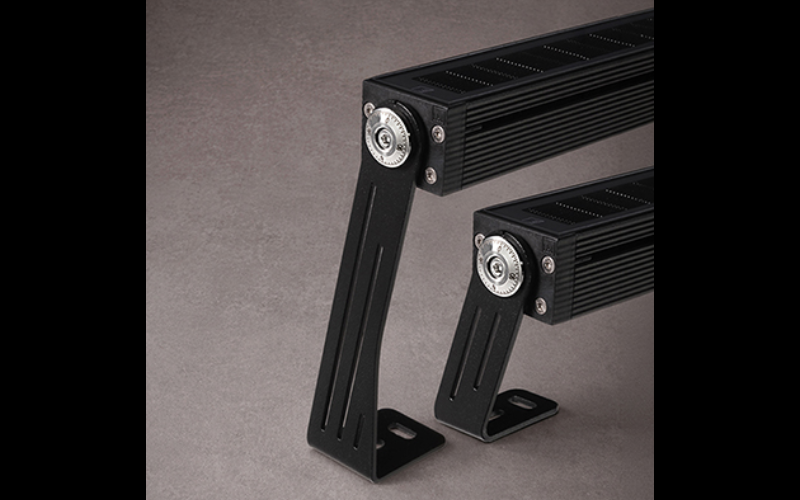

The Neva Pro 5 series are frameless linear profiles designed to enhance wall and facades with new generation optics with a variety of well-defined beams. Available in tunable white light (2200K-5000K) and 4 different lengths with in-grade housing for recessed applications or adjustable brackets for surface mount.
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 1.46"L: 24.25"36.06"59.72"H: 2.28"
- Light SourceLED
- CCT/ColorTunable White
- CRI80
- Watt(Approx)28 W42 W71 W
- Lumens(Approx)2234 Lm3351 Lm5585 Lm

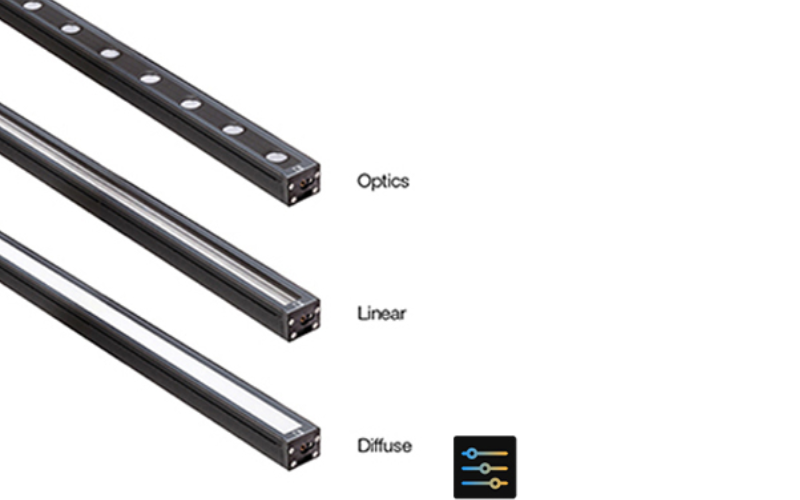

- OpticsDirectMediumFloodWide FloodAdjustable OpticsGeneral DiffusedAsymmetric/Wash
- Adjustable
- DimmingDim to 3-10%Dim to <1%TRIAC/Forward/LeadingELV/Reverse/Trailing0-10VDMX/RDM
- Controls/Network
- Power/VoltageRemoteUNV 120-277V
- Integral Emergency
- Lumen Maintenance50000 h
- CertificatesETL
- EnvironmentIP66IP67
- Mounting TypeSurface
- Housing
- Housing Depth
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
Lead timeNP5-S
Cost
—
CONFIGURATORDESCRIPTIONDIMENSIONSLIGHT SOURCEWATT/LUMENSPOWER/CONTROLSYou reconfigured the product. To remove this message please update you custom description.Marks unavailable product configuration, refer to manufacturer’s documentation for details
BUILD CATALOG NUMBER
