Designplan

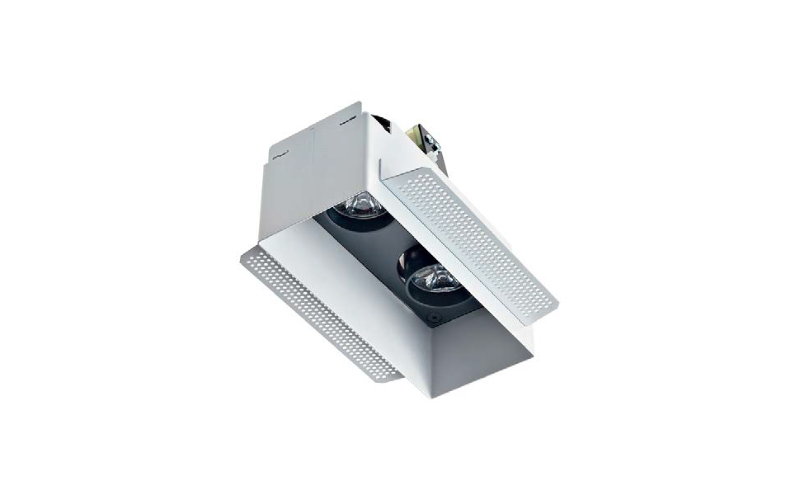

Quad 6.2 5.9'' x 2.6'' Recessed, Adjustable Flangeless LED Downlight RGB.
Configure
Add to project
RESOURCES
-
SPEC SHEET
-
WHERE TO BUY
-
MANUFACTURER'S PAGE
-
ASK MANUFACTURER
DESCRIPTION
Quad is a family of recessed downlights for indoor use. It is available in various combinations: flush or deep-set, fixed or adjustable optics, white or RGB light, installation on solid walls or plasterboard, with or without a frame.
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 2.56"L: 5.91"
- Light SourceLED
- CCT/Color2700K3000K4000K5000KRGBBlue
- CRI80
- Watt(Approx)12 W
- Lumens(Approx)420 Lm672 Lm
- OpticsDirectNarrowMediumWide FloodAdjustable Optics
- Adjustable
- DimmingDim to 3-10%Dim to 1%Dim to <1%0-10VLutron Hi-lume Eco (L3DAE)Lutron Hi-lume 3-wire (L3DA3W)DMX/RDM
- Controls/Network
- Power/VoltageRemoteUNV 120-277V
- Integral Emergency
- Lumen Maintenance50000 h
- CertificatesETL
- Environment
- Mounting TypeCeiling RecessedTrimless Drywall
- HousingNew Construction
- Housing Depth3.35 ''
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
Lead timeQD6262
Cost
—
CONFIGURATORDESCRIPTIONDIMENSIONSLIGHT SOURCEWATT/LUMENSPOWER/CONTROLSYou reconfigured the product. To remove this message please update you custom description.Marks unavailable product configuration, refer to manufacturer’s documentation for details
BUILD CATALOG NUMBER
