Designplan

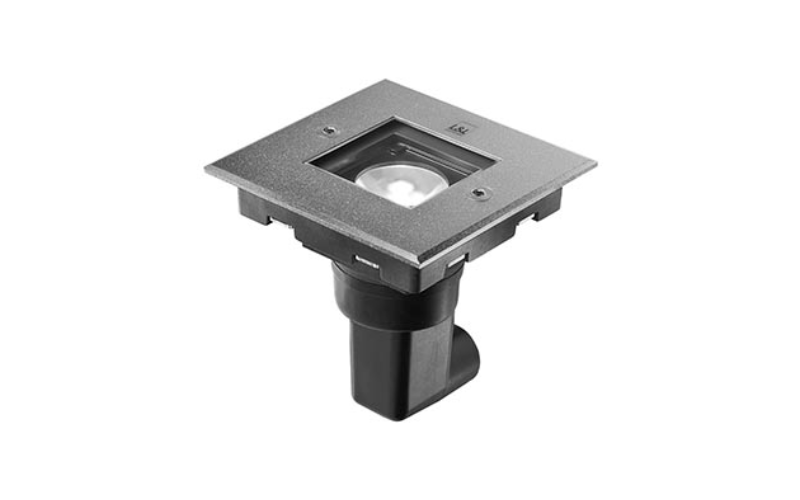

Quilatero 1.1 Recessed LED Uplight.
Configure
Add to project
RESOURCES
-
SPEC SHEET
-
WHERE TO BUY
-
MANUFACTURER'S PAGE
-
ASK MANUFACTURER
DESCRIPTION
Quilatero is a square, recessed family of driveover-rated uplights suitable for outdoor installation as architectural facade lighting. Quilatero comes in 4 sizes and power ranges, with both fixed and adjustable optics. Quilatero 1.1 is a 4” square with 3.5W, fixed optics, 2 standard finishes and visible screw for greater security
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 3.9"L: 3.9"
- Light SourceLED
- CCT/Color2400K or less2700K3000K4000K
- CRI80 90
- Watt(Approx)3.5 W
- Lumens(Approx)200 Lm170 Lm
- OpticsDirectGrazingNarrowFloodGeneral DiffusedAsymmetric/Wash
- Adjustable
- DimmingDim to 3-10%Non-DimTRIAC/Forward/LeadingELV/Reverse/Trailing0-10VLutron Hi-lume Eco (L3DAE)
- Controls/Network
- Power/VoltageRemoteUNV 120-277V120V
- Integral Emergency
- Lumen Maintenance60000 h
- CertificatesETL
- EnvironmentIP65IP66IP69K High-Pressure/Steam-Jet CleaningIP68
- Mounting TypeIn-GradeConcrete Drive Over
- Housing
- Housing Depth
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
Lead timeQL111
Cost
—
CONFIGURATORDESCRIPTIONDIMENSIONSLIGHT SOURCEWATT/LUMENSPOWER/CONTROLSYou reconfigured the product. To remove this message please update you custom description.Marks unavailable product configuration, refer to manufacturer’s documentation for details
BUILD CATALOG NUMBER
