Designplan
Rondò 3.4 6.3'' LED In-Grade Uplight Driveover Rated IP67.
 Configure
 Add to project
Designplan.
Designplan.

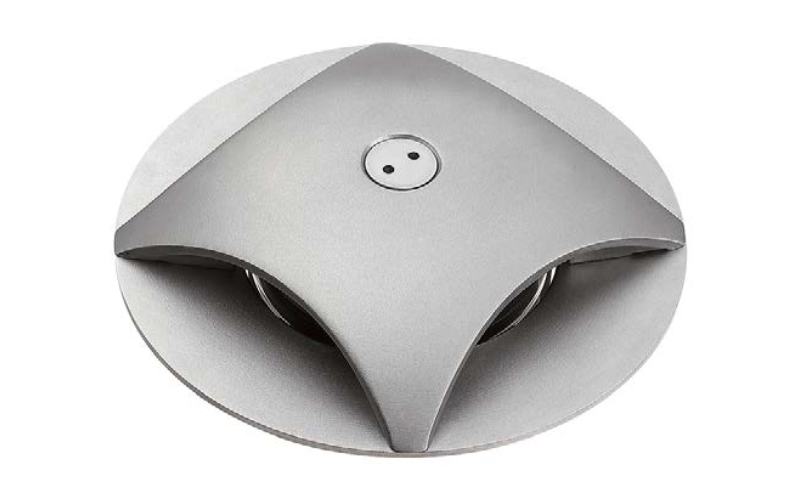

Designplan. Rondò 3.4 6.3'' LED In-Grade Uplight Driveover Rated IP67.
Designplan. Rondò 3.4 6.3'' LED In-Grade Uplight Driveover Rated IP67.
RESOURCES
DESCRIPTION

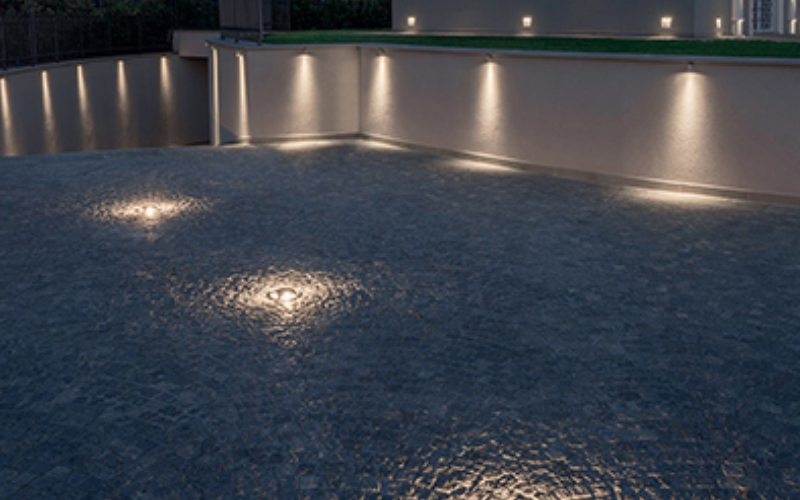

Rondó are a line of recessed uplights for outdoor use with a driveover rating of up to 11,000 lbs. It is available in a single or doubel beam with 10° or radial optics.
MORE DESCRIPTION
SPECIFICATIONS
  • Dimensions
    W: 6.30"
    L: 6.30"
    H: 1.38"
  • Light Source
    LED
  • CCT/Color
    2700K3000K4000K
  • CRI
    80
  • Watt(Approx)
    8 W
  • Lumens(Approx)
    90 Lm
  • Optics
    PatternNarrowGeneral Diffused
  • Adjustable
  • Dimming
    Dim to 3-10%Dim to <1%Non-DimTRIAC/Forward/LeadingELV/Reverse/Trailing0-10VLutron Hi-Lume 3-wire (L3D)
  • Controls/Network
  • Power/Voltage
    RemoteUNV 120-277V
  • Integral Emergency
  • Lumen Maintenance
    50000 h
  • Certificates
    ETL
  • Environment
    IP67
  • Mounting Type
    Semi-RecessedConcrete Drive Over
  • Housing
  • Housing Depth
 SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
