FIXED M-02 Stainless Steel LED Wall Mount.
Configure
Add to project
RESOURCES
-
SPEC SHEET
-
WHERE TO BUY
-
MANUFACTURER'S PAGE
-
ASK MANUFACTURER
DESCRIPTION

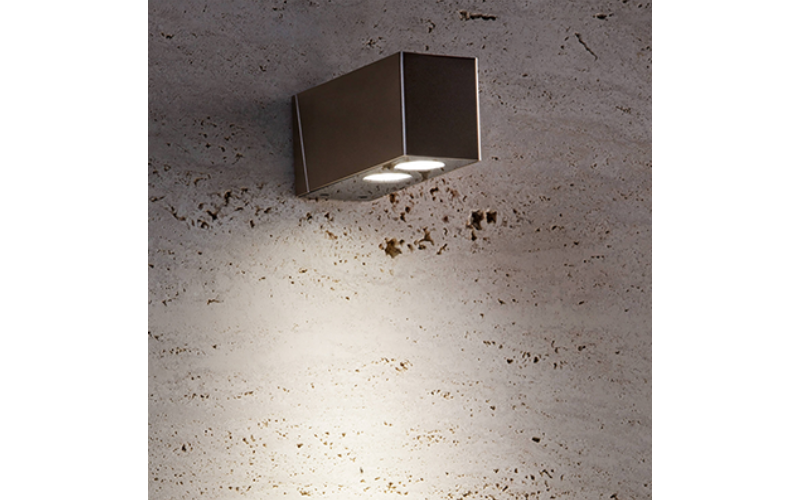

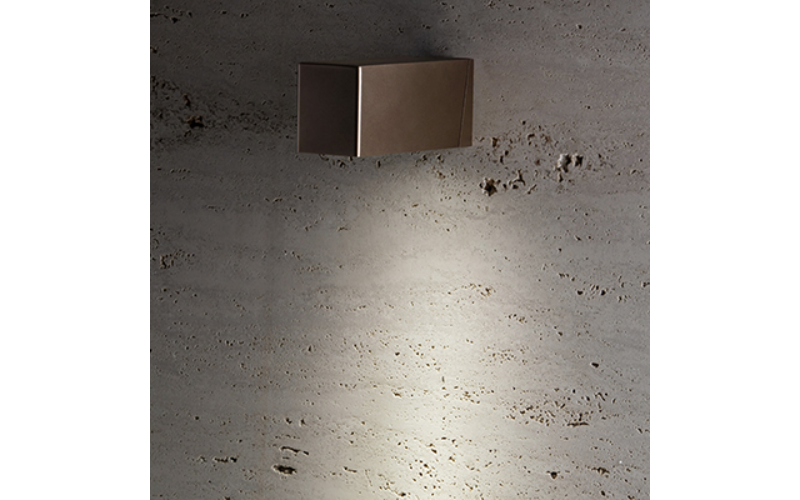

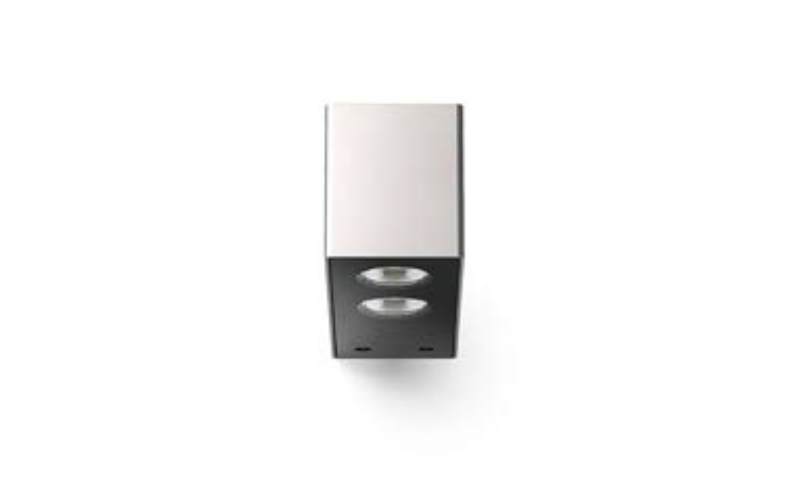

FIXED is a stainless steel, IP66-rated, wall mounted LED luminaire with clean lines and a compact design that is suitable for outdoor installation. It is available in mono or bi light emission, with one, two or three LEDs, and 3 standard Hard Coat Treatment finishes. FIXED M-02 is the 10W (2 LEDs) double downlight version.
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 6.30"L: 2.36"H: 2.76"
- Light SourceLED
- CCT/Color2700K3000K4000K
- CRI85
- Watt(Approx)10 W
- Lumens(Approx)1100 Lm
- OpticsDirectMediumFloodWide FloodGeneral DiffusedAsymmetric/Wash
- Adjustable
- DimmingDim to 3-10%Dim to <1%TRIAC/Forward/LeadingELV/Reverse/Trailing0-10V
- Controls/Network
- Power/VoltageRemoteUNV 120-277V
- Integral Emergency
- Lumen Maintenance100000 h
- CertificatesETL
- EnvironmentIP66
- Mounting TypeWall Surface
- Housing
- Housing Depth
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
Lead timeSPT40220
