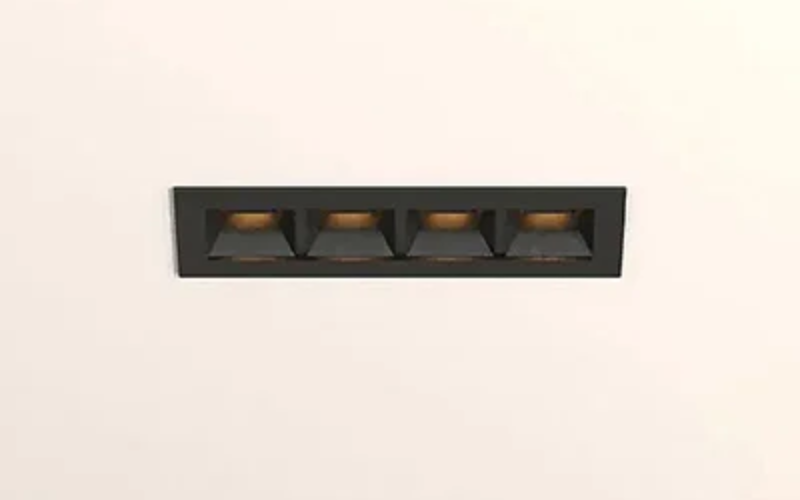

Pixl 4 Recessed Linear LED Downlight, 7.1'' x 2.4'', 8W, 1057 lm, IP20.
Configure
Add to project
RESOURCES
-
SPEC SHEET
-
WHERE TO BUY
-
MANUFACTURER'S PAGE
-
ASK MANUFACTURER
DESCRIPTION
Pixl is a family of recessed or ceiling mounted linear downlights that come in 4 or 7 module sizes and provide low glare lighting for indoor applications. The Pixl 4 Recessed is the 4 LED recessed version that is available in 2 color temperatures, 2 optics options and 2 standard finishes.
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 2.36"L: 7.09"
- Light SourceLED
- CCT/Color2700K3000K
- CRI90
- Watt(Approx)8 W
- Lumens(Approx)1057 Lm
- OpticsDirectWide Flood
- Adjustable
- DimmingDim to 3-10%Dim to 1%Dim to <1%TRIAC/Forward/LeadingELV/Reverse/Trailing0-10VLutron Hi-lume Eco (L3DAE)Lutron Hi-lume 3-wire (L3DA3W)
- Controls/Network
- Power/VoltageRemoteUNV 120-277V120V
- Integral Emergency
- Lumen Maintenance50000 h
- CertificatesETL
- Environment
- Mounting TypeCeiling RecessedDrywall
- HousingFixture
- Housing Depth2.13 ''
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
Lead timeT4170-71
