Designplan

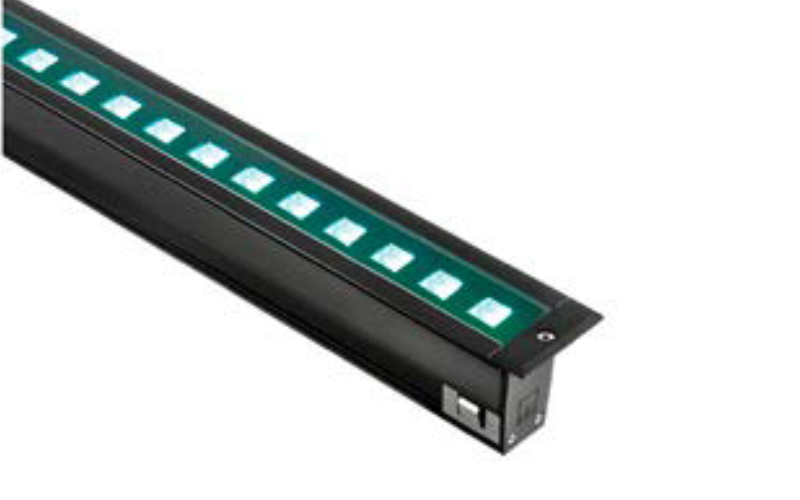

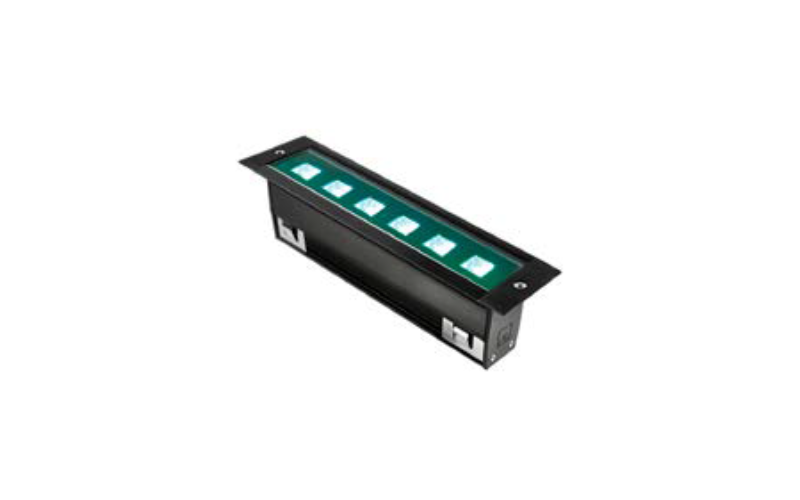

Tago 4 Adj. Linear In-Grade w/ Trim RGBW LED, Driveover, 3 lengths, 14W/24W/49W, 1374-5496 lm, IP65, IP67, IP69.
Configure
Add to project
RESOURCES
-
SPEC SHEET
-
WHERE TO BUY
-
MANUFACTURER'S PAGE
-
ASK MANUFACTURER
DESCRIPTION
Tago is a linear profile suitable for architectural lighting of facades of historic and public buildings, hotels and residential exteriors. Each is available in 3 lengths with a wide range of optics and color temperatures. Tago 4 series is recessed RGBW version with trim for floors, ceilings and walls, that comes with Integral DMX512 decoder with RDM. Requires a DMX/RDM controller provided by others. Suitable for power washing.
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 3.23"L: 12.68"22.52"42.20"H: 4.65"
- Light SourceLED
- CCT/ColorRGBW
- CRI
- Watt(Approx)14 W24 W49 W
- Lumens(Approx)1374 Lm2748 Lm5496 Lm
- OpticsDirectMediumFloodWide Flood
- AdjustableAdjustable
- DimmingDim to 3-10%DMX/RDM
- Controls/Network
- Power/VoltageIntegralUNV 120-277V
- Integral Emergency
- Lumen Maintenance
- CertificatesETL
- EnvironmentIP65IP67IP69K High-Pressure/Steam-Jet Cleaning
- Mounting TypeBrackets
- Housing
- Housing Depth
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
Lead timeTG430
