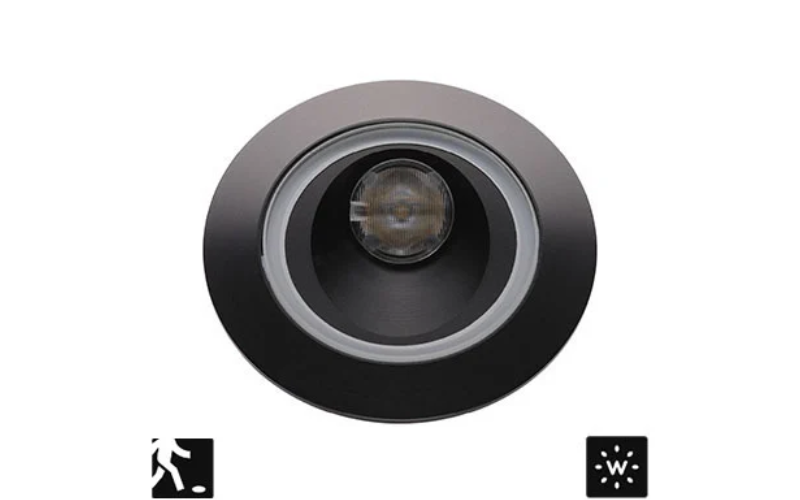

UOP Recessed Wall or In-Grade Uplight LED, Walkover, Ø3.2'', 2W, 164 lm, IP67.
Configure
Add to project
RESOURCES
-
SPEC SHEET
-
WHERE TO BUY
-
MANUFACTURER'S PAGE
-
ASK MANUFACTURER
DESCRIPTION

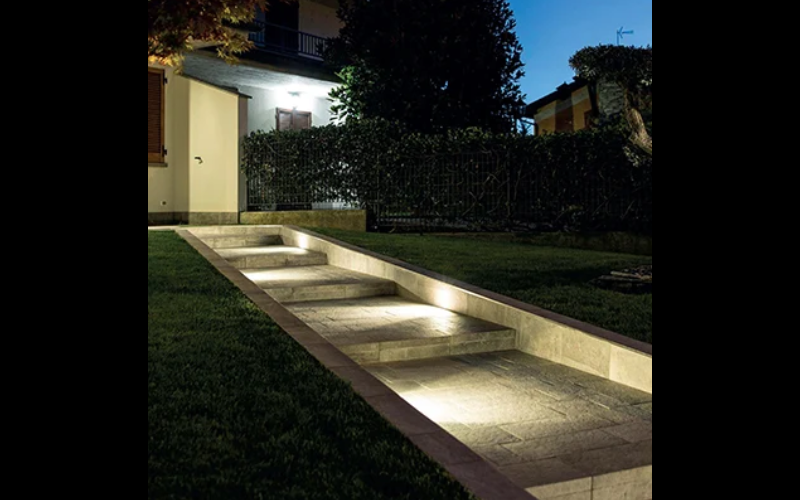

UOP is a compact and powerful recessed wall or in-grade uplight that produces a photometric width that is unique for its category. It is available in 2 versions that are walkover safe up to 3000 lbs, and offered in 3 color temperatures with asymmetric optics and 2 standard finishes.
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 3.15"L: 3.15"H: 1.97"3.35"
- Light SourceLED
- CCT/Color2700K3000K4000K
- CRI80
- Watt(Approx)2 W
- Lumens(Approx)164 Lm
- OpticsDirectAsymmetric/Wash
- Adjustable
- DimmingDim to 3-10%Dim to <1%Non-DimTRIAC/Forward/LeadingELV/Reverse/Trailing0-10VLutron Hi-lume Eco (L3DAE)Lutron Hi-lume 3-wire (L3DA3W)
- Controls/Network
- Power/VoltageRemoteUNV 120-277V
- Integral Emergency
- Lumen Maintenance80000 h
- CertificatesETL
- EnvironmentIP67
- Mounting TypeWall RecessedIn-Grade
- Housing
- Housing Depth
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
