Designplan

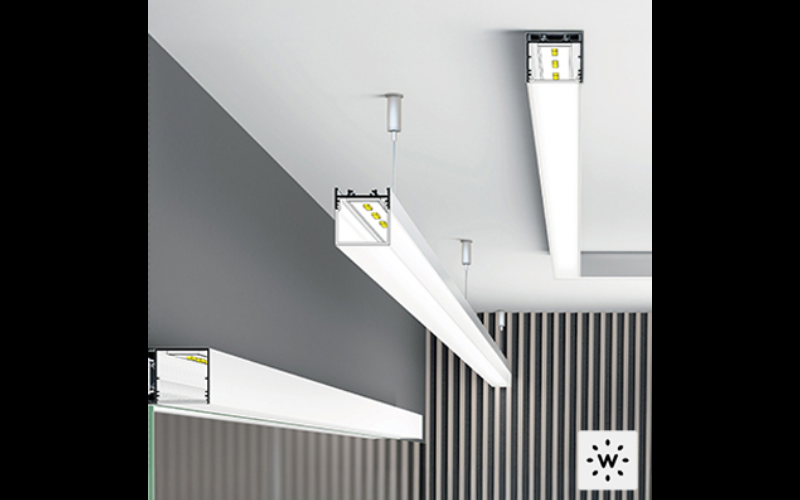

VARIO 30-02 Surface Mount or Suspended LED Linear Profile.
Configure
Add to project
RESOURCES
-
SPEC SHEET
-
WHERE TO BUY
-
MANUFACTURER'S PAGE
-
ASK MANUFACTURER
DESCRIPTION
Vario 30-02 is a surface mounted or suspended LED profile that is part of a larger system that creates a continuous line of light in angled connections for unlimited possibilities for light creation. With a body made of aluminum, it comes in 4 lengths, 39.4”, 78.7”, 118.1” or 159.5”, and 4 standard finishes.
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 1.31"L: 39.37"78.74"118.11"159.45"H: 1.17"
- Light SourceLED
- CCT/Color2700K3000K4000K
- CRI85
- Watt(Approx)5.49 W/Ft
- Lumens(Approx)620 Lm/Ft
- OpticsDirectGeneral Diffused
- Adjustable
- DimmingDim to 3-10%Dim to 1%Dim to <1%Non-DimTRIAC/Forward/LeadingELV/Reverse/Trailing0-10VLutron Hi-lume Eco (L3DAE)Lutron Hi-lume 3-wire (L3DA3W)
- Controls/Network
- Power/VoltageRemote
- Integral Emergency
- Lumen Maintenance
- Certificates
- Environment
- Mounting TypePendantSurface
- Housing
- Housing Depth
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
Lead timeVARIO-30-02
Cost
—
CONFIGURATORDESCRIPTIONDIMENSIONSLIGHT SOURCEWATT/LUMENSPOWER/CONTROLSYou reconfigured the product. To remove this message please update you custom description.Marks unavailable product configuration, refer to manufacturer’s documentation for details
BUILD CATALOG NUMBER
