Edison Price
BOLD-3S-CYL-ADJ-CM. Bold Cylinders Series 3'' Ceiling Mount Architectural.
Configure
Add to project



RESOURCES
DESCRIPTION

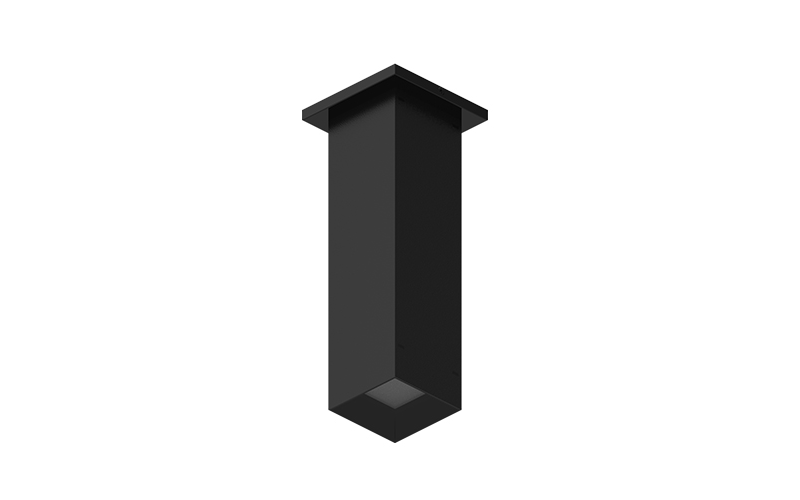

The BOLD adjustable LED cylinder is a sleek architectural luminaire available in round or square apertures with standard or shallow heights. Made from durable extruded aluminum with multiple finish options, it offers versatile mounting, field adjustable height, precision optics with lens options, and glare free downlight or wallwash illumination. Compatible with a wide range of dimming systems and advanced LED modules including Dim to Warm, Natural Spectrum, and Xicato Artist Series, it delivers high quality, long lasting light for commercial, retail, hospitality, and high end residential applications.
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 3 3/8"L: 3 3/8"H: 15"
- Light SourceLED
- CCT/Color2700K3000K3000K Dim to Warm3500K4000K5000K
- CRI90 98
- Watt(Approx)21.7 W
- Lumens(Approx)900 Lm1200 Lm1500 Lm2000 Lm2364 Lm
- OpticsDirectNarrowMediumFloodWide Flood
- AdjustableAdjustable
- DimmingDim to 3-10%Dim to 1%Dim to <1%TRIAC/Forward/LeadingELV/Reverse/Trailing0-10VLutron Hi-lume EcoSystem (LDE1)Xitanium SRLutron Hi-lume Premier Eco (PEQ0)eldoLED SOLO DALIeldoLED SOLO DMX
- Controls/NetworkEthernetCasambi
- Power/VoltageIntegralUNV 120-277V120V347V
- Integral Emergency
- Lumen Maintenance60000 h
- CertificatesMade in USABAA
- EnvironmentDamp
- Mounting TypeCeiling Surface
- Housing
- Housing Depth
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
