Edison Price
EPD-R1-SQ. 1'' Square Remodel Adjustable Downlight.
 Configure
 Add to project

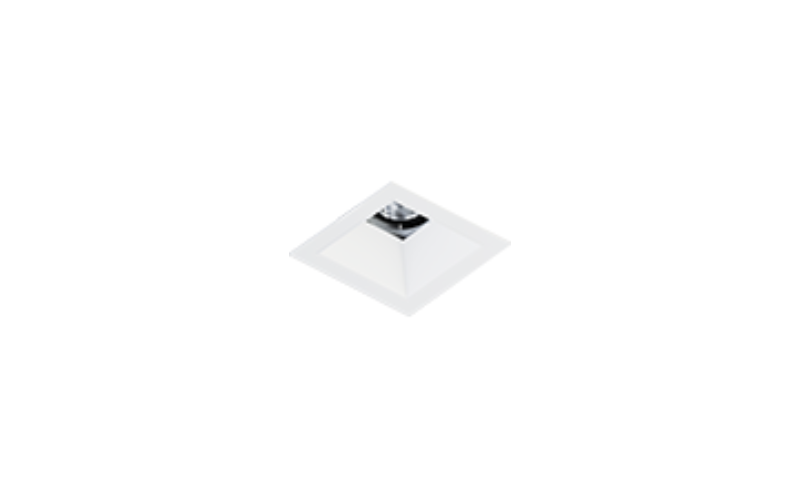

Edison Price. EPD-R1-SQ. 1'' Architectural LED Downlight.
Edison Price. EPD-R1-SQ. 1'' Architectural LED Downlight.
Edison Price. EPD-R1-SQ. 1'' Architectural LED Downlight.
RESOURCES
DESCRIPTION
– Compact architectural downlight with a 1 inch aperture delivering precise glare free illumination
– Functions as a downlight, pinhole light, and adjustable downlight in one fixture
– Vertical adjustment shifts beam distribution from narrow to wide
– Tool free hot aiming with 35 degree tilt and full 360 degree rotation
– Adjustable shielding for improved light control
– IC rated for use in insulated ceilings
– Trims available in round, square, and wall wash designs
MORE DESCRIPTION
SPECIFICATIONS
  • Dimensions
    W: 2 3/8"
    L: 2 3/8"
  • Light Source
    LED
  • CCT/Color
    2700K3000K3500K4000K5000K
  • CRI
    98 85 90
  • Watt(Approx)
  • Lumens(Approx)
    800 Lm1000 Lm
  • Optics
    DirectMedium
  • Adjustable
    AdjustableHot Aiming
  • Dimming
    Dim to 3-10%Dim to 1%TRIAC/Forward/Leading0-10V
  • Controls/Network
  • Power/Voltage
    Integral120V277V
  • Integral Emergency
    EM Integral
  • Lumen Maintenance
    120000 h
  • Certificates
    ETLMade in USA
  • Environment
    Wet
  • Mounting Type
    Ceiling RecessedTrimless Drywall
  • Housing
    Chicago PlenumRemodel IC
  • Housing Depth
    4 7/8 ''
 SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
