Edison Price

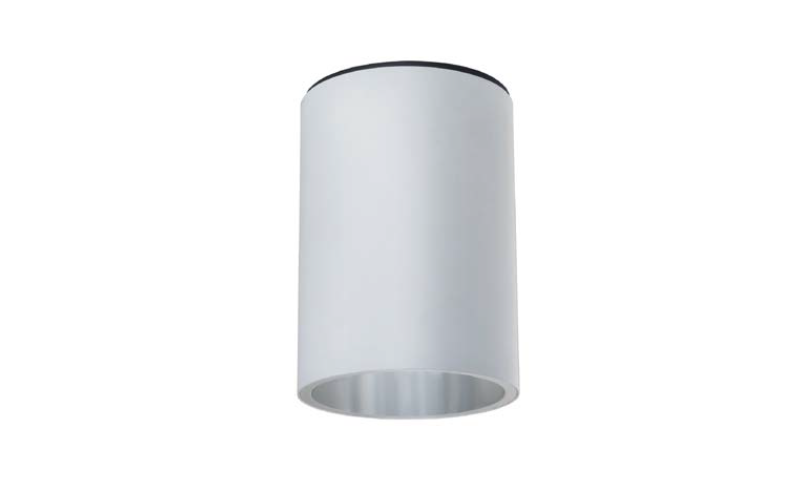

FH-SM-XTM. 5″ Surface Mounted LED Downlight/Wallwasher Xicato.
Configure
Add to project
RESOURCES
DESCRIPTION
The SM/PM cylinders are a family of clean, refined surface or pendant mounted LED downlight/wallwashers. Matching apertures to the Three Four Five series for combining downlights and cylinders, orchestrating precise, intentional illumination while retaining uniformity of design.
– A single housing accepts both field-interchangeable downlight and wallwash (120°) reflectors
– Glare-less anodized curved reflector achieves a 40° shielding angle; providing uniform illumination and low aperture brightness
– Durable-yet-light, one-piece 0.040″ thick aluminum housing; hand-spun internal compartment
– A single housing accepts both field-interchangeable downlight and wallwash (120°) reflectors
– Glare-less anodized curved reflector achieves a 40° shielding angle; providing uniform illumination and low aperture brightness
– Durable-yet-light, one-piece 0.040″ thick aluminum housing; hand-spun internal compartment
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 5 3/4"L: 5 3/4"H: 8 1/2"
- Light SourceLED
- CCT/Color2700K3000K3500K4000K
- CRI98 80
- Watt(Approx)15 W20 W17 W27 W23 W
- Lumens(Approx)551 Lm735 Lm905 Lm1175 Lm1177 Lm1483 Lm
- OpticsDirectGeneral DiffusedAsymmetric/WashDouble Wash
- Adjustable
- DimmingDim to 3-10%Dim to 1%Dim to <1%TRIAC/Forward/LeadingELV/Reverse/Trailing0-10VeldoLED SOLO DALIeldoLED SOLO 0-10V
- Controls/Network
- Power/VoltageIntegral120V277V
- Integral Emergency
- Lumen Maintenance50000 h
- CertificatesCSAMade in USA
- EnvironmentDamp
- Mounting TypeCeiling Surface
- Housing
- Housing Depth
