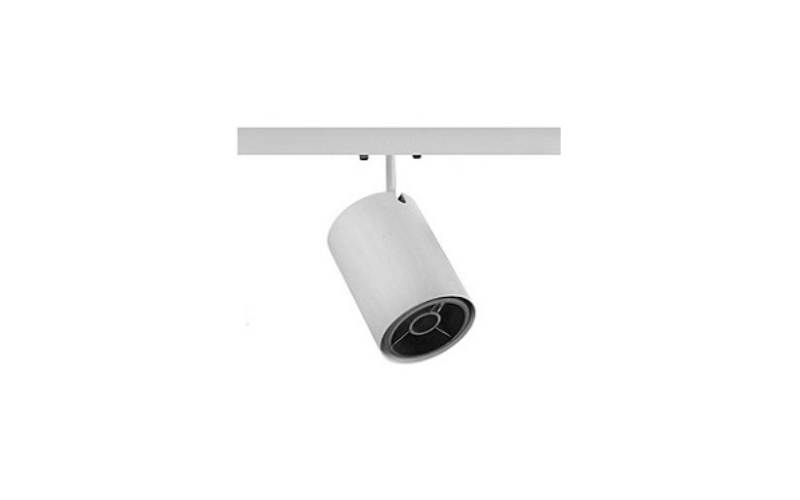

Edison Price
IDM-MX-XTM-OG. Maxima Narrow Spot Ring Baffle Track Mounted LED 9° Enhanced Glare Control Spotlight Xicato Integral Dimmer.
Configure
Add to project
RESOURCES
DESCRIPTION
MAX is a family of gracefully proportioned cylinders designed for low to very high ceilings.
– A concealed swivel provides 385° horizontal rotation and 0-90° tilt. The swivel is permanently tensioned, allowing the luminaire to remain fixed at any aiming angle
– The optical assembly includes an integral reflector and a matte black concentric Ring Baffle which increases beam control, eliminates spill light, and minimizes glare
– Clips accept up to 2 extra optical accessories for additional refining of the beam and visual effect in the field
– Beams as tight as 9°, achieving up to 61,042 CBCP
– A concealed swivel provides 385° horizontal rotation and 0-90° tilt. The swivel is permanently tensioned, allowing the luminaire to remain fixed at any aiming angle
– The optical assembly includes an integral reflector and a matte black concentric Ring Baffle which increases beam control, eliminates spill light, and minimizes glare
– Clips accept up to 2 extra optical accessories for additional refining of the beam and visual effect in the field
– Beams as tight as 9°, achieving up to 61,042 CBCP
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 5 3/4"L: 8 1/4"H: 5 3/4"
- Light SourceLED
- CCT/Color2700K3000K3500K4000K
- CRI80 98
- Watt(Approx)23 W26 W
- Lumens(Approx)488 Lm615 Lm
- OpticsDirectNarrowFlood
- AdjustableAdjustable
- DimmingDim to 3-10%
- Controls/Network
- Power/VoltageIntegral120V277V
- Integral Emergency
- Lumen Maintenance50000 h
- CertificatesCSAMade in USA
- Environment
- Mounting TypeTrack/Busway
- Housing
- Housing Depth
