Edison Price

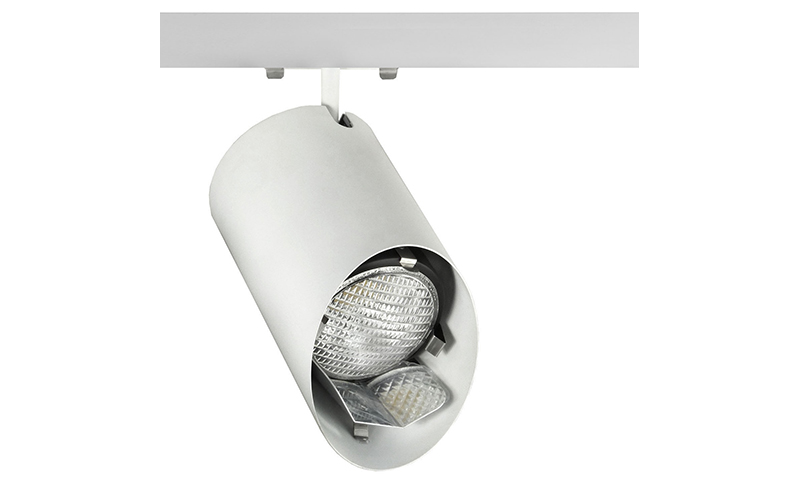

IDM-MX-XTM-W. Maxima Track Mounted LED Wallwasher Xicato Integral Dimmer.
Configure
Add to project
RESOURCES
DESCRIPTION
MAX is a family of gracefully proportioned cylinders designed for low to very high ceilings.
– A concealed swivel provides 385° horizontal rotation and 0-90° tilt. The swivel is permanently tensioned, allowing the luminaire to remain fixed at any aiming angle
– The optical assembly includes an aluminum reflector and a 40° x 70° spread lens. The assembly accepts 1 extra optical accessory
– A specially designed optical assembly provides a uniform floor-to-ceiling, side-to-side wash of light without scallops
– Assembly is keyed relative to luminaire housing to retain critical lens orientation
– A concealed swivel provides 385° horizontal rotation and 0-90° tilt. The swivel is permanently tensioned, allowing the luminaire to remain fixed at any aiming angle
– The optical assembly includes an aluminum reflector and a 40° x 70° spread lens. The assembly accepts 1 extra optical accessory
– A specially designed optical assembly provides a uniform floor-to-ceiling, side-to-side wash of light without scallops
– Assembly is keyed relative to luminaire housing to retain critical lens orientation
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 5 3/4"L: 5 3/4"H: 10"
- Light SourceLED
- CCT/Color2700K3000K3500K4000K
- CRI80 98
- Watt(Approx)23 W26 W
- Lumens(Approx)1162 Lm1465 Lm
- OpticsDirectAsymmetric/Wash
- AdjustableAdjustable
- DimmingDim to 3-10%
- Controls/Network
- Power/VoltageIntegral120V277V
- Integral Emergency
- Lumen Maintenance
- CertificatesCSAMade in USA
- Environment
- Mounting TypeTrack/Busway
- Housing
- Housing Depth
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
Lead timeIDM-MX-XTM-W
Cost
—
CONFIGURATORDESCRIPTIONDIMENSIONSLIGHT SOURCEWATT/LUMENSPOWER/CONTROLSYou reconfigured the product. To remove this message please update you custom description.Marks unavailable product configuration, refer to manufacturer’s documentation for details
BUILD CATALOG NUMBER
