Edison Lighting Group

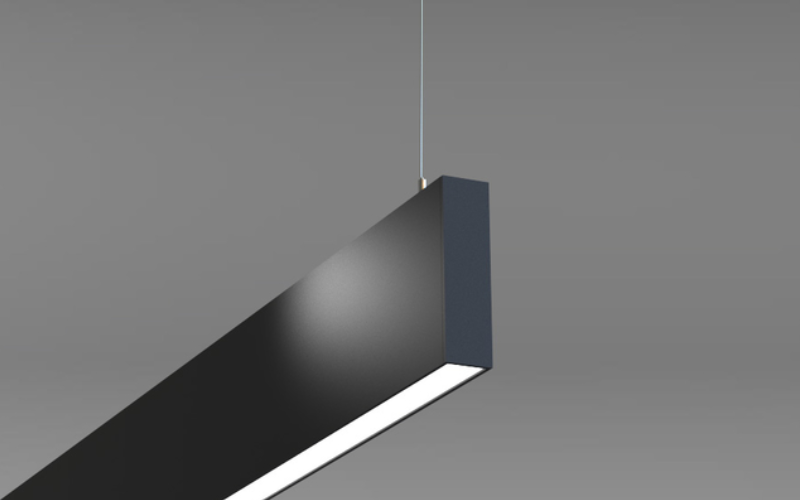

ED BLADE+. Architectural Linear Luminaire.
Configure
Add to project
RESOURCES
DESCRIPTION
- Architectural linear luminaire with direct or direct/indirect distribution.
- Light source: LED board.
- Downlight illumination is provided by range of precision optical lenses.
- Up-light comes equipped with batwing lens for better ceiling coverage.
- Ultra-Slim aluminum body contain integrated driver.
- Available for row-mounted installations in various lengths.
- Suitable for suspended and wall mount installations.
- LED Strips are rated for 60,000 hrs. L80 with +90 CRI.
- Has a proven record in office, commercial and retail installations.
- Custom modifications are available.
- ED luminaires are certified to CSA and UL standards
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 1.4"L: Run length (Ft)H: 4.2"
- Light SourceLED
- CCT/Color3000K3500K4000K
- CRI90
- Watt(Approx)7 W10 W12 W
- Lumens(Approx)860 Lm1230 Lm1470 Lm
- OpticsDirectDirect/IndirectFloodWide FloodGeneral DiffusedBatwing Indirect/General Direct
- Adjustable
- DimmingDim to 3-10%Dim to 1%0-10VDALI
- Controls/NetworkBluetooth
- Power/VoltageIntegralUNV 120-277V347V
- Integral Emergency
- Lumen Maintenance600000 h
- CertificatesETLDeclare
- Environment
- Mounting TypePendantWall Surface
- Housing
- Housing Depth
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
