Edison Lighting Group
ED LINE 3+.
Configure
Add to project
RESOURCES
-
SPEC SHEET
-
WHERE TO BUY
-
MANUFACTURER'S PAGE
-
ASK MANUFACTURER
DESCRIPTION

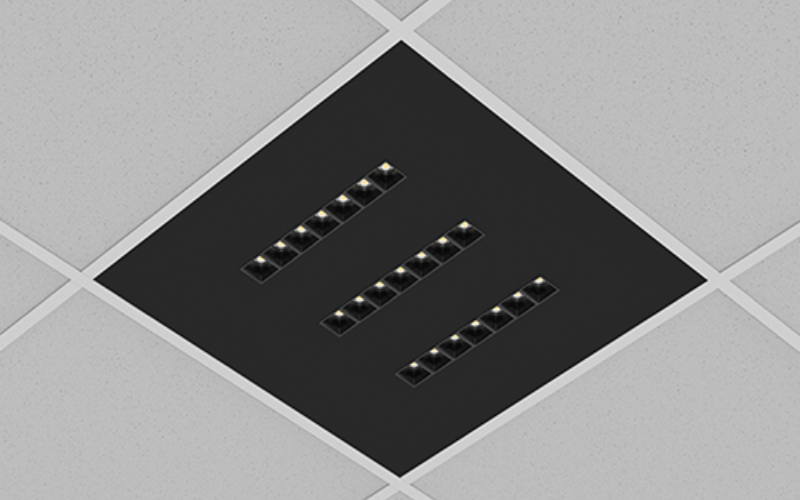

- Architectural luminaire with direct/indirect lighting distribution
- Light source: 11” LED Modular Board
- Dark Optic provides superior lighting distribution with precise low glare illumination
- 7 cell LEDiL reflector is available in several standard finishes
- Offered with regular 50°/16UGR and flood 80°/19UGR internal optic
- Low profile steel body housing contains a built-in driver
- Suitable for non-insulated recessed installations into T-Bar or drywall
- Has a proven record in office, commercial and retail installations
- LED’s are rated for 60,000hrs. L80 with +90 CRI
- Custom modifications are available
- ED luminaires are certified to CSA and UL Standards
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 23.75"L: 23.75"
- Light SourceLED
- CCT/Color3000K3500K4000K
- CRI90
- Watt(Approx)20 W30 W40 W
- Lumens(Approx)2550 Lm3825 Lm5100 Lm
- OpticsDirectWide Flood
- Adjustable
- DimmingDim to 3-10%0-10VDALI
- Controls/NetworkIntegral Sensor
- Power/VoltageIntegral120V277V347V
- Integral EmergencyEM Integral
- Lumen Maintenance60000 h
- CertificatesUL/CULDeclare
- Environment
- Mounting TypeCeiling RecessedDrywallT-Grid Ceiling
- HousingNew Construction
- Housing Depth1.50 ''
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
Lead timeED-LINE-3-PL
Cost
—
CONFIGURATORDESCRIPTIONDIMENSIONSLIGHT SOURCEWATT/LUMENSPOWER/CONTROLSYou reconfigured the product. To remove this message please update you custom description.Marks unavailable product configuration, refer to manufacturer’s documentation for details
