Edison Lighting Group

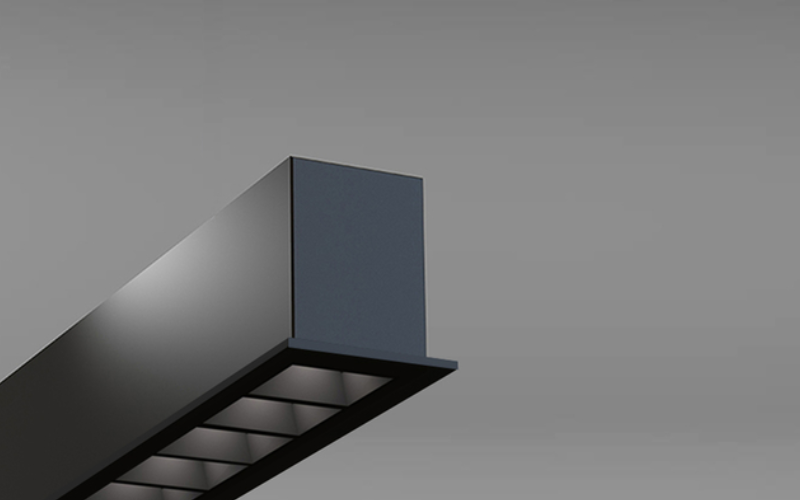

ED VECTOR+DO (RS).
Configure
Add to project
RESOURCES
DESCRIPTION
- Architectural linear luminaire with direct distribution.
- Light source: LED board or LED strip.
- Even illumination is provided by high-efficiency opal lenses.
- Available for row-mounted installations in various lengths.
- Suitable for recessed applications in drywall or T-Bar ceilings.
- Extruded aluminum body comes with a standard black or white finish.
- Also available with various custom color options.
- LED Strips are rated for 60,000 hrs. L80 with +90 CRI.
- Has a proven record in office, commercial and retail installations.
- Custom modifications are available.
- ED luminaires are certified to CSA and UL standards
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 2.56”L: 1 Ft2 Ft3 Ft4 Ft5 Ft6 Ft7 Ft8 FtRun lenght Ft
- Light SourceLED
- CCT/Color3000K3500K4000K
- CRI90
- Watt(Approx)3 W/Ft5 W/Ft8 W/Ft
- Lumens(Approx)415 Lm/Ft690 Lm/Ft1130 Lm/Ft
- OpticsDirectWide FloodAsymmetric/Wash
- Adjustable
- DimmingDim to 3-10%Dim to 1%Non-Dim0-10VDALI
- Controls/NetworkBluetoothWireless DimmingCasambiIntegral Sensor
- Power/VoltageIntegralUNV 120-277V347V
- Integral EmergencyEM Integral
- Lumen Maintenance60000 h
- CertificatesCSADeclare
- Environment
- Mounting TypeCeiling RecessedDrywallT-Bar
- HousingNew Construction
- Housing Depth4.5 ''
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
