Edison Lighting Group

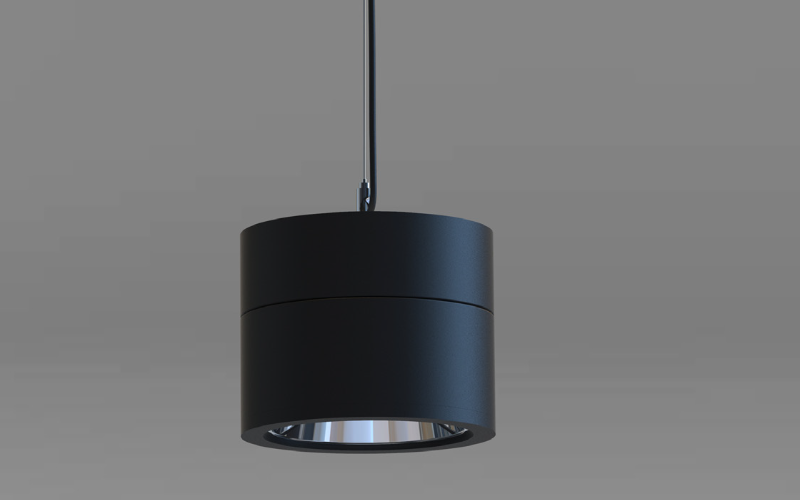

ED PRO+.
Configure
Add to project
RESOURCES
DESCRIPTION
- Architectural luminaire with direct lighting distribution.
- Light source: COB LED.
- Low glare opal lens is built in to the integral specular reflector for even light distribution.
- Suitable for suspended installation.
- Steel body of the luminaire with integral driver.
- Available with matt white, black or grey finishes.
- LED Spot is rated for 60,000hrs. L70 with +85 CRI.
- Has a proven record in office, commercial applications.
- Custom modifications are available.
- ED luminaires are certified to CSA and UL Standards.
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 7.5"L: 7.5"H: 5.56"
- Light SourceLED
- CCT/Color3000K3500K4000K
- CRI90
- Watt(Approx)15 W20 W30 W
- Lumens(Approx)1025 Lm2050 Lm3075 Lm
- OpticsDirectGeneral Diffused
- Adjustable
- DimmingDim to 3-10%Dim to 1%Non-Dim0-10VDALI
- Controls/Network
- Power/VoltageIntegral120V277V347V
- Integral Emergency
- Lumen Maintenance60000 h
- CertificatesUL/CUL
- Environment
- Mounting TypePendantCeiling Surface
- Housing
- Housing Depth
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
Lead timeEDPRO
Cost
—
CONFIGURATORDESCRIPTIONDIMENSIONSLIGHT SOURCEWATT/LUMENSPOWER/CONTROLSYou reconfigured the product. To remove this message please update you custom description.Marks unavailable product configuration, refer to manufacturer’s documentation for details
BUILD CATALOG NUMBER
