Edison Lighting Group

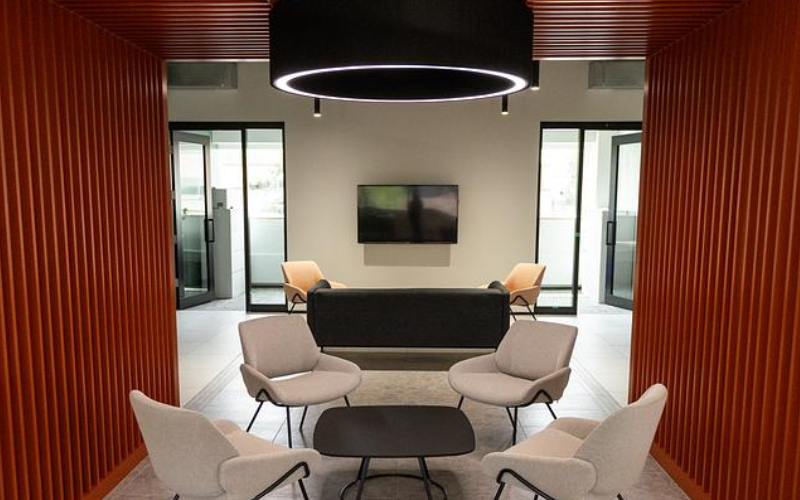

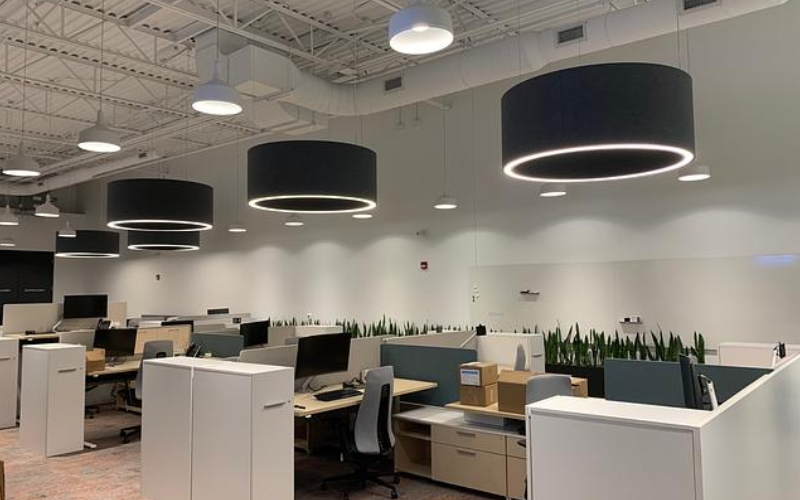

SONIC RING+ (FV).
Configure
Add to project
RESOURCES
-
SPEC SHEET
-
WHERE TO BUY
-
MANUFACTURER'S PAGE
-
ASK MANUFACTURER
DESCRIPTION
- Architectural sound absorbing Eco Felt Acoustic panel.
- Made from recyclable plastic material available in different thinknesses.
- Class1 Fire rated with 0.67 Noise Reduction Coefficient/1” Acoustic.
- Light source: LED Board (5.5”/11”/22”/24”).
- Diffused illumination is provided by frosted opal lens.
- Extruded aluminum body comes with white, black or grey finishes.
- Also available with custom color options or vinyl decals.
- LED Strips are rated for 60,000hrs. L80 with +85 CRI.
- Has a proven record in office, commercial and retail installations.
- Custom modifications are available.
- ED luminaires are certified to CSA and UL Standards.
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 24.9"36.7"48.5"60.3"L: 24.9"36.7"48.5"60.3"H: 11.75"15.75"23.75"
- Light SourceLED
- CCT/Color3000K3500K4000KTunable White
- CRI90
- Watt(Approx)25 W50 W75 W
- Lumens(Approx)2295 Lm4590 Lm6885 Lm
- OpticsDirectGeneral Diffused
- Adjustable
- DimmingDim to 3-10%Dim to 1%Non-Dim0-10VDALI
- Controls/NetworkBluetooth
- Power/VoltageIntegral120V277V347V
- Integral Emergency
- Lumen Maintenance60000 h
- CertificatesUL/CULDeclare
- EnvironmentAcoustic Absorption
- Mounting TypePendant
- Housing
- Housing Depth
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
Lead timeRING
Cost
—
CONFIGURATORDESCRIPTIONDIMENSIONSLIGHT SOURCEWATT/LUMENSPOWER/CONTROLSYou reconfigured the product. To remove this message please update you custom description.Marks unavailable product configuration, refer to manufacturer’s documentation for details
BUILD CATALOG NUMBER
