Edison Lighting Group
Sonic PIPE +RC.
Configure
Add to project
RESOURCES
DESCRIPTION

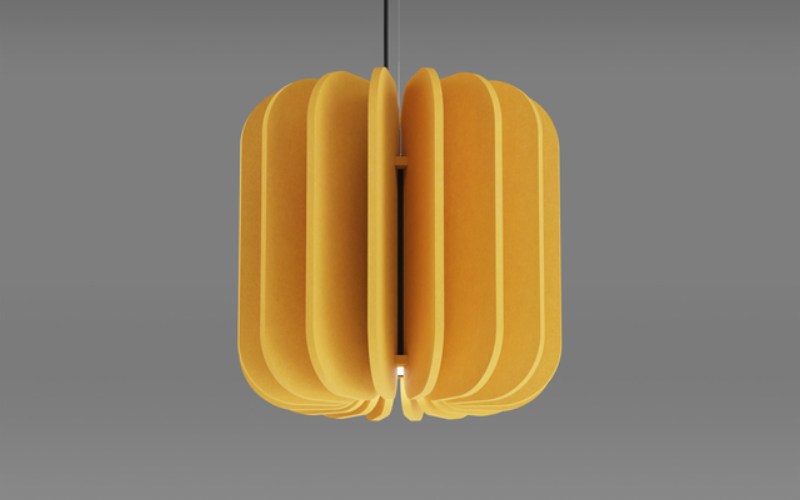

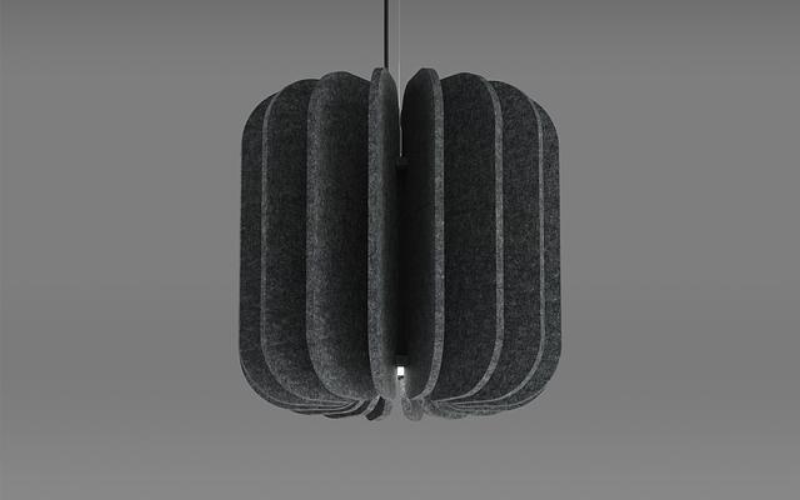

- Architectural acoustic luminaire with direct lighting distribution.
- Light source: COB LED.
- High-efficiency integral reflector combined with opal lens insert provides excellent lighting distribution.
- Extruded aluminum body comes with a black or white finish.
- Removable fin-shaped Eco-Felt Baffles are attached to the top and face plate.
- Available in two standard sizes with various baffle shapes.
- Class 1 fire rated with 0.7 Noise Reduction Coefficient/1” Acoustic.
- LED spot is rated for 60,000 hrs. L70 with +90 CRI.
- Suitable for suspended installations.
- Custom finishes and modifications are available.
- ED luminaires are certified to CSA and UL standards
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 18"L: 18"H: 17.75"
- Light SourceLED
- CCT/Color3000K3500K4000K
- CRI90
- Watt(Approx)10 W15 W20 W
- Lumens(Approx)990 Lm1475 Lm1940 Lm
- OpticsDirectGeneral Diffused
- Adjustable
- DimmingDim to 3-10%Dim to 1%Non-Dim0-10VDALI
- Controls/NetworkBluetooth
- Power/VoltageIntegralUNV 120-277V
- Integral Emergency
- Lumen Maintenance60000 h
- CertificatesETLDeclare
- EnvironmentAcoustic Absorption
- Mounting TypePendant
- Housing
- Housing Depth
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
Lead timeSONIC-PIPE-RC
Cost
—
CONFIGURATORDESCRIPTIONDIMENSIONSLIGHT SOURCEWATT/LUMENSPOWER/CONTROLSYou reconfigured the product. To remove this message please update you custom description.Marks unavailable product configuration, refer to manufacturer’s documentation for details
BUILD CATALOG NUMBER
