Sonic Vector+ FC-FS.
Configure
Add to project
RESOURCES
DESCRIPTION

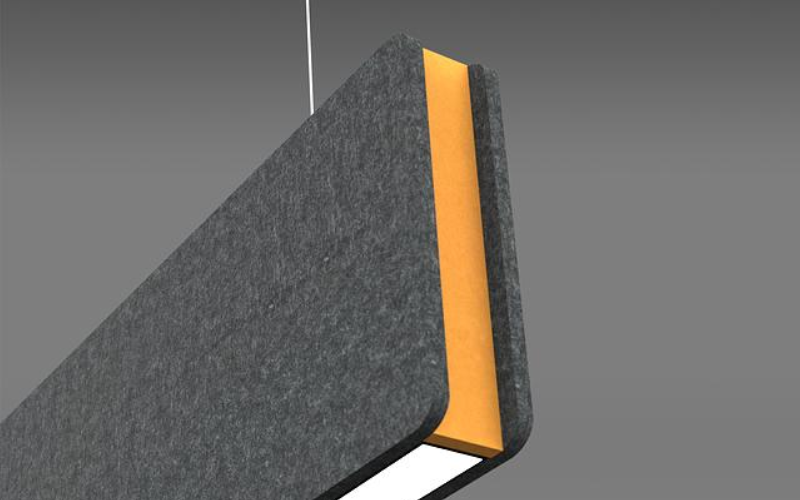

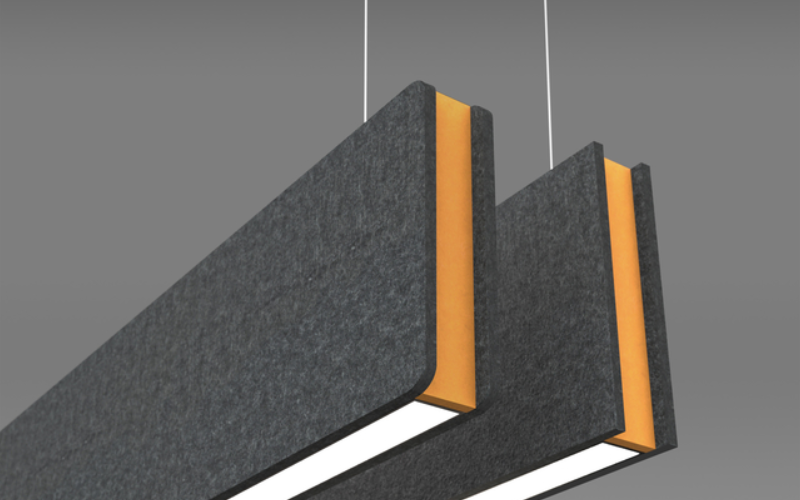

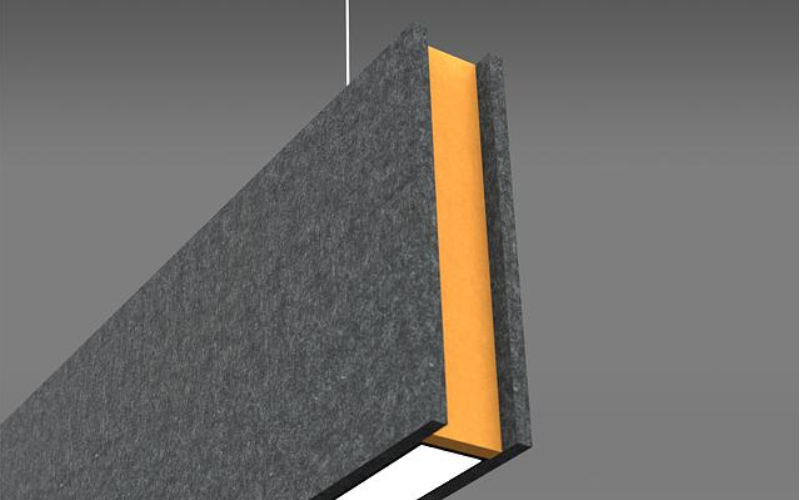

- Architectural acoustic luminaire with direct/indirect lighting distribution.
- Made from recyclable plastic material available in different thicknesses.
- Class 1 fire-rated with 0.7 noise reduction coefficient / 1” acoustic.
- Light source: LED boardS.
- Diffused illumination is provided by a frosted opal lens.
- The extruded aluminum body comes with a built-in driver and is available in a white, black, or grey finish.
- Also available with custom color options.
- LED strips are rated for 60,000 hrs (L80) with +90 CRI.
- Has a proven record in office, commercial, and retail installations.
- Custom modifications are available.
- ED luminaires are certified to CSA and UL standards.
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 3"L: 47.75"71.75"95.75"Run length (Ft)H: 11.75"15.75"23.75"
- Light SourceLED
- CCT/Color3000K3500K4000KTunable WhiteRGBW
- CRI90
- Watt(Approx)5 W/Ft7 W/Ft10 W/Ft
- Lumens(Approx)535 Lm/Ft750 Lm/Ft1080 Lm/Ft
- OpticsDirectIndirectDirect/IndirectGeneral Diffused
- Adjustable
- DimmingDim to 3-10%Dim to 1%Non-Dim0-10V
- Controls/NetworkBluetooth
- Power/VoltageIntegralUNV 120-277V347V
- Integral Emergency
- Lumen Maintenance60000 h
- CertificatesETLDeclare
- EnvironmentAcoustic Absorption
- Mounting TypePendant
- Housing
- Housing Depth
