E3. ELEMENT 3'' LED DUAL ADJUSTABLE DOWNLIGHT.
Configure
Add to project
RESOURCES
DESCRIPTION

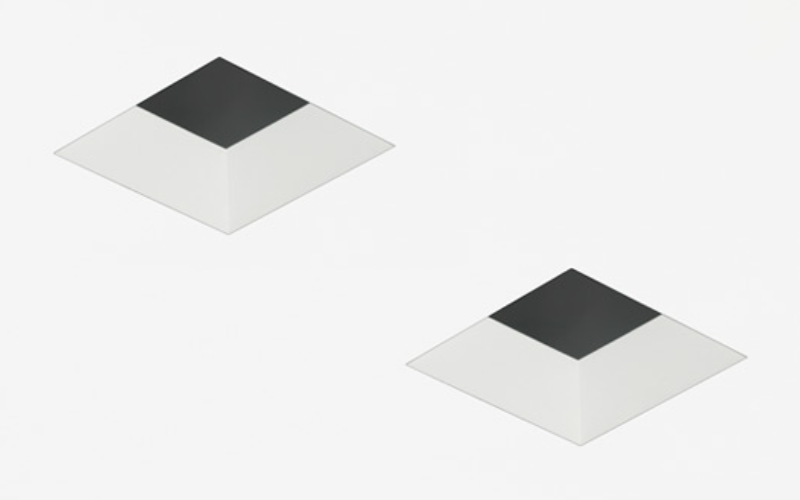

The 3" LED Dual Adjustable downlight provides high performance and beautiful architectural appearance when design requirements for task or accent lighting require two closely spaced downlights with ndependent aiming capability. Designed to utilize the same trim pieces as the rest of the ELEMENT 3" LED series (two per housing), the ELEMENT 3" LED Dual Adjustable can be used in conjunction with the entire 3" family and remain undetectable. Complete independent adjustability allows for lockable hot aiming with 0°- 35° tilt and 361° rotation of both light modules within a single housing.
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 3.2"4.3"L: 3.2"4.3"
- Light SourceLED
- CCT/Color2700K3000K3000K Dim to Warm3500K
- CRI80 90
- Watt(Approx)24 W34 W
- Lumens(Approx)1800 Lm2658 Lm2600 Lm3600 Lm
- OpticsDirectNarrowMediumFloodWide Flood
- AdjustableAdjustable
- DimmingDim to 1%TRIAC/Forward/LeadingELV/Reverse/Trailing0-10V
- Controls/Network
- Power/VoltageIntegralUNV 120-277V
- Integral Emergency
- Lumen Maintenance50000 h
- CertificatesETLT24*
- EnvironmentDampWet
- Mounting TypeCeiling RecessedDrywallTrimless DrywallWood
- HousingChicago PlenumAir TightIC Air Tight
- Housing Depth4.1 ''6 ''
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
Lead timeE3DAD
Cost
—
CONFIGURATORDESCRIPTIONDIMENSIONSLIGHT SOURCEWATT/LUMENSPOWER/CONTROLSYou reconfigured the product. To remove this message please update you custom description.Marks unavailable product configuration, refer to manufacturer’s documentation for details
BUILD CATALOG NUMBER
