Ephesus (Cooper Lighting Solutions)

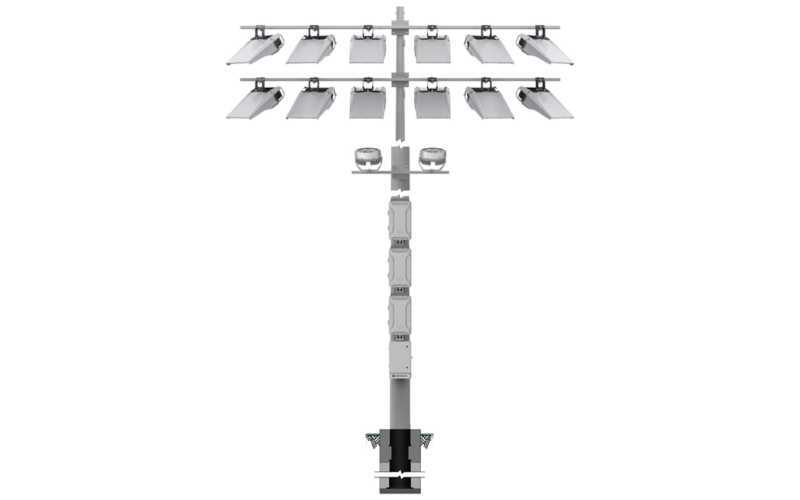

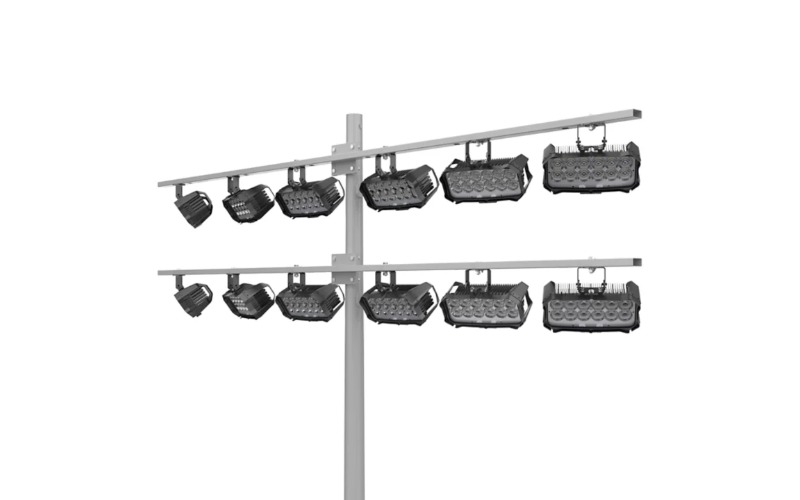

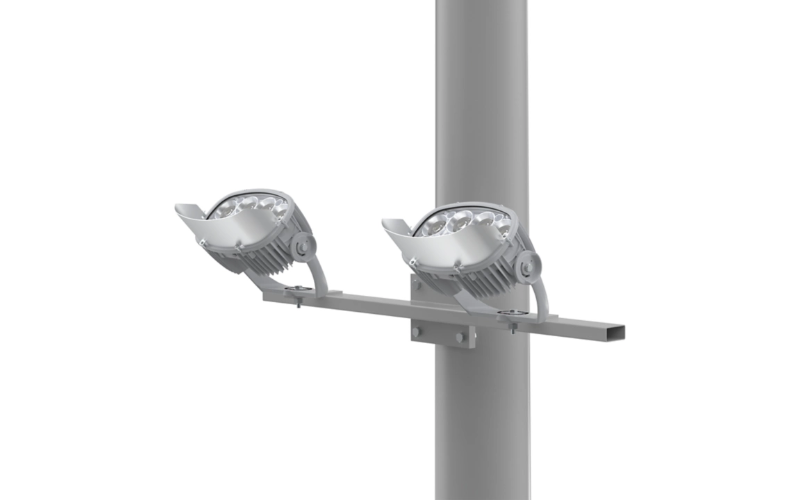

LS. LUMASPORT 12 REMOTE Power SYSTEM.
Configure
Add to project
RESOURCES
DESCRIPTION
The Ephesus LumaSport 12 is engineered with precision optics and advanced glare control that minimizes light spill and sky glow. Designed for communities that value environmental stewardship and DarkSky compliance, the system delivers powerful illumination, reliable performance, and simplified installation through its remote power architecture.
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 24.53"L: 36.69"H: 18.62"
- Light SourceLED
- CCT/Color4000K5700K
- CRI70 80 90
- Watt(Approx)1051 W
- Lumens(Approx)124000-171000 Lm
- OpticsDirectNarrowMediumFloodWide Flood
- AdjustableAdjustable
- DimmingDim to 3-10%DMX
- Controls/Network
- Power/VoltageRemote208V220-240V277VUNC 347-480V347V
- Integral Emergency
- Lumen Maintenance
- CertificatesUL/CULDark Sky
- EnvironmentIP66
- Mounting TypePole/Mast ArmTrunnionSlip Fitter
- Housing
- Housing Depth
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
Lead timeLS-12
Cost
—
CONFIGURATORDESCRIPTIONDIMENSIONSLIGHT SOURCEWATT/LUMENSPOWER/CONTROLSYou reconfigured the product. To remove this message please update you custom description.Marks unavailable product configuration, refer to manufacturer’s documentation for details
BUILD CATALOG NUMBER
