EcoSense Lighting
F080. Rise Quad.
Configure
Add to project
RESOURCES
DESCRIPTION

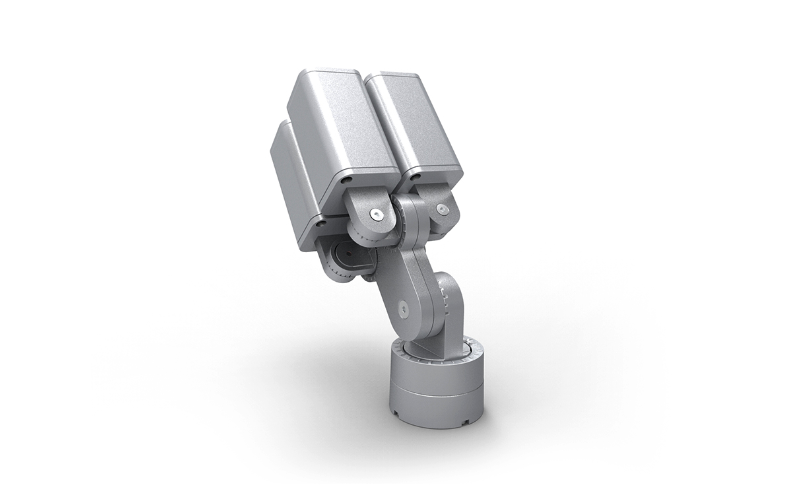

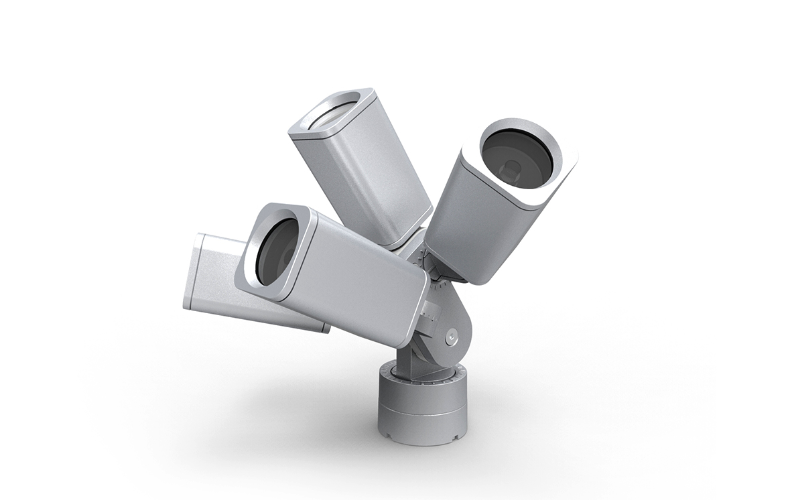

RISE F080 Quad connects four RISE F080 Single units using a single-point bracket. From one single installation point, Lighting Designers can increase lumen power (up to 4560 lumens) and/or aim each light fixture in different directions. Each fixture head can be specified with a unique beam angle and lumen output for application specific needs. This powerful and compact unit is ideal for spot, accent, landscape, façade, and floodlight applications.
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 5.2"L: 5.2"H: 13.05"
- Light SourceLED
- CCT/Color2400K or less2700K3000K3500K4000K5000K6500KYellow/AmberRedGreenBlue
- CRI80 90
- Watt(Approx)16 W30 W46 W
- Lumens(Approx)1716 Lm3044 Lm4560 Lm
- OpticsDirectNarrowMediumFloodWide Flood
- AdjustableAdjustable
- DimmingDim to 3-10%TRIAC/Forward/LeadingELV/Reverse/Trailing
- Controls/Network
- Power/VoltageIntegralUNV 120-277V
- Integral Emergency
- Lumen Maintenance36300 h60500 h
- CertificatesUL/CULRoHS
- EnvironmentIP66NatatoriumMarine
- Mounting TypeGround Spike/StakeWall Arm/CantileverSurfaceKnuckleBase
- Housing
- Housing Depth
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
Lead timeF080-4M
